10S3P 18650 6Ah Battery Pack
Hongyitai 36V 6Ah battery pack gives you longer riding time and ensures you have reliable power throughout your journey. It can be easily charged using the compatible XT60 discharge interface and dc5521 charging interface. Its versatility makes it not only useful for electric skateboards, but also for other applications such as electric bicycles or scooters.
- UL1642
- IEC62133
- UN38.3
- MSDS
18650 36V 6Ah lithium ion battery specs
-
Charging Voltage 42V
-
Nominal Voltage 36V
-
Nominal Capacity 6Ah
-
Discharge Cut-off Voltage 30V
-
Charge Current 2A
-
Max Charge Current 6A
-
Discharge Current 2A
-
Max Discharge Current 20A
-
Operatingt Tmperature -20~60℃
-
Dimension 118.11 x 11.81 x 3.94 inch
-
Weight 1.5Kg
-
Lifespan 500
-
PCM Yes
-
Customization Yes
18650 battery pack factory

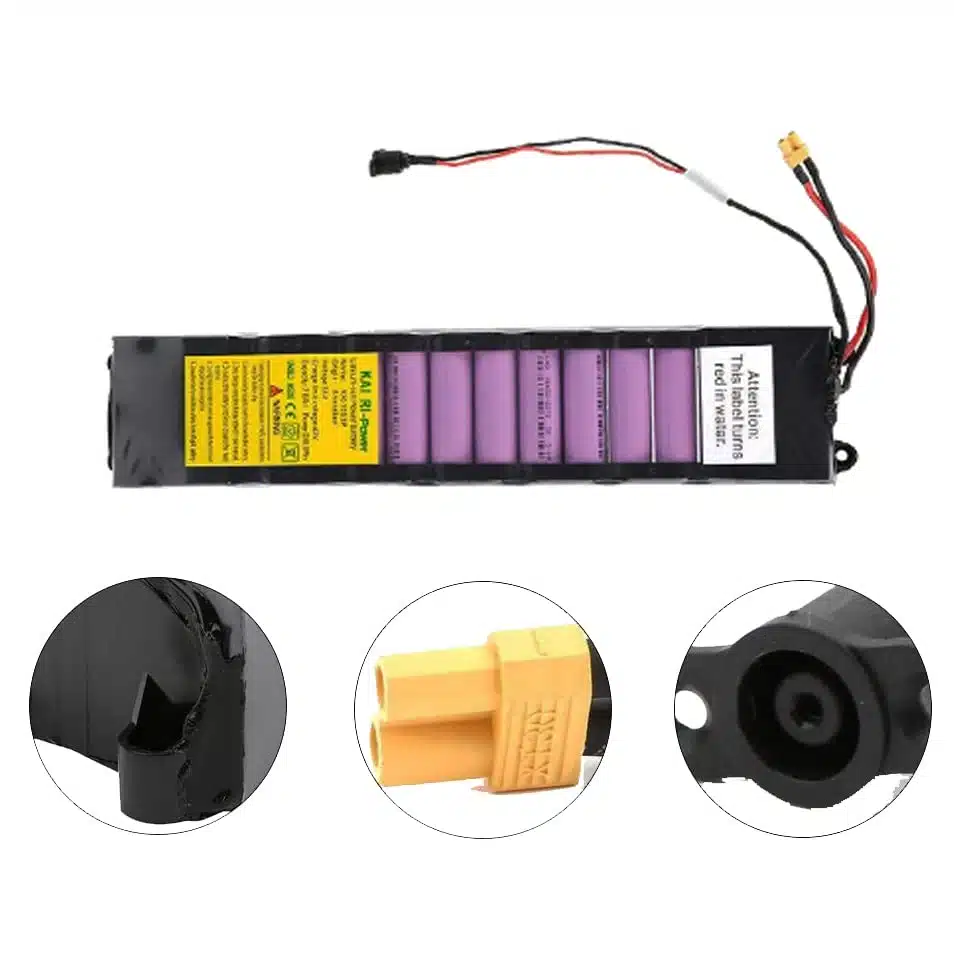

18650 36V 6Ah battery pack configuration
18650 10S3P 36V 6Ah lithium-ion battery pack consists of 30 18650 cells. First, 10 18650 cells are matched with voltage, internal resistance, and capacity to form a 10S1P battery module. Then, 3 modules are connected in parallel to form a 10S3P battery pack. Then, a 20A protection board is welded. In the middle, all welding points need to be insulated. Finally, it is wrapped with blue PVC.
18650 36V 10.4Ah battery discharge stable
Wide voltage range, stable performance: With an output voltage range of 28V-42V, our batteries provide your electric bike with stable and consistent power, enabling optimal performance and enhancing your overall riding experience. Whether you’re looking for more speed or longer range, our batteries can meet your needs.
Get Started
Get 37v 6Ah lithium-ion battery price today
We will evaluate your project and get back to you within 1 working day.
