12V 10Ah Battery
Are you still relying on traditional, bulky lead-acid batteries for your 12V 10Ah power needs? Maybe for UPS backup power, security systems, portable devices, or your DIY projects? If so, it’s time to learn about and embrace the next generation of power technology – lithium iron phosphate (LiFePO4). Hongyitai has been engaged in customizing and wholesale lithium iron phosphate batteries for more than 10 years, contact us to get the latest price.

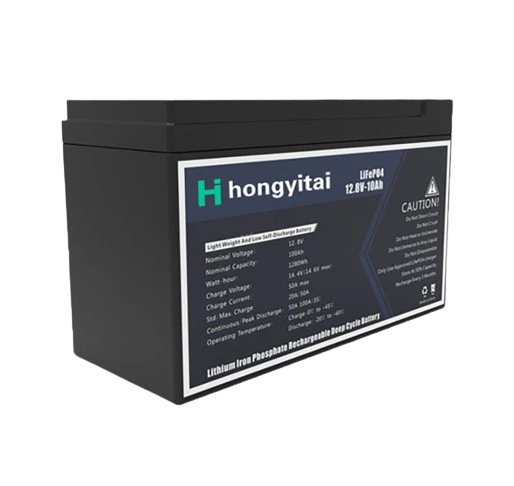

Hongyitai 12V 10Ah Lithium Battery Specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 10Ah
-
Rated Energy 128Wh
-
Max Discharge Power 128W
-
Standard Charge Current 2A
-
Recommend Charge Current ≤4
-
Max Charge Current 10A
-
Recommend Discharge Current ≤10
-
Max Continue Discharge Current 10A
-
Peak Discharge Current (10S) 20A
-
Resistance ≤40mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 1.2Kg
-
Dimensions (Length * Width * Thick) 151*65*94mm
LiFePO4 vs. Lead Acid (SLA) Detailed Parameters
LiFePO4 shows overwhelming advantages in almost all key performance indicators. This is not just a minor improvement, but a huge leap in technology that will directly translate into a better user experience and lower long-term costs.
| Feature | 12V 10Ah LiFePO4 Battery | 12V 10Ah SLA Battery (Sealed Lead-Acid) | Advantage Explained |
|---|---|---|---|
| Cycle Life | 3,000 – 7,000+ Cycles (@80% DoD) | 300 – 500 Cycles (@50% DoD) | 5-10x+ Longer Life: Significantly cuts replacement costs & hassle |
| Weight | Approx. 1.2 – 1.5 kg (2.6 – 3.3 lbs) | Approx. 2.5 – 3.5 kg (5.5 – 7.7 lbs) | 50-70% Lighter: Extremely lightweight |
| Usable Capacity | Nearly 100% DoD (Deep discharge capable) | Recommended 50% DoD (Deep discharge harms lifespan) | More actual usable energy from the same rated capacity |
| Voltage Profile | Stable voltage during discharge | Voltage drops significantly during discharge | Provides more consistent, stable power to devices |
| Charging Speed | Supports 1C or faster charging (Fully charged in ~1 hr) | Typically requires 0.1C-0.3C slow charge (Hours to charge) | Dramatically reduces charging time, increases efficiency |
| Self-Discharge Rate | Very Low (< 3% / month) | Relatively High (5-15% / month, varies with temp) | Holds charge longer during storage, less prone to depletion |
| Safety | Stable chemistry, low risk of fire/explosion, built-in smart BMS | Can produce hydrogen gas, higher risk of overcharge/discharge issues | Inherently safer chemistry and protections |
| Environmental Impact | No heavy metals (lead, cadmium), eco-friendly | Contains lead, requires careful recycling/disposal | A greener, more environmentally conscious choice |
| Maintenance Needs | Completely Maintenance-Free | Some types need checks, requires full charge storage | Zero maintenance effort required, saving time and hassle |
| Operating Temp. | Wider range, relatively better low-temp performance | More limited by high/low temperatures | Suitable for a broader range of environmental conditions |
| Long-Term Cost (TCO) | Higher initial cost, but significantly lower TCO due to lifespan & zero maintenance | Lower initial cost, but higher TCO due to frequent replacements | A more economical and smarter investment in the long run |
Hongyitai 12v 10ah rechargeable battery applications
Upgrading your devices from bulky, short-lived lead-acid batteries to advanced LiFePO4 technology has never been easier. Our 12V 10Ah LiFePO4 batteries are designed with compatibility in mind and are designed to be an ideal replacement for traditional lead-acid batteries in a variety of scenarios. They are likely working for motorcycle, scooter, ride on toy, portable power. RV, AGV and medical devices.
To ensure a smooth upgrade, please always check the following points before purchase and installation: Compare the size of the LiFePO4 battery to see if it is compatible with your existing battery compartment or installation space. Confirm that the terminal type (e.g. F1, F2, etc.) and the positive and negative directions match your device connection cable. It is highly recommended to use a LiFePO4-specific charger.
Why choose Hongyitai 12V 10Ah LiFePO4 battery
- Strict cell matching: We insist on using only brand new high-quality A-grade LiFePO4 cells to ensure that the battery capacity, internal resistance, cycle life and consistency meet the best standards from the source. Each cell is strictly screened and matched.
- Leading Battery Management System (BMS): Using self-developed/industry-leading intelligent BMS technology, it not only provides basic protection, but also accurately monitors the status of each battery string, realizes intelligent balancing management, effectively extends the life of the battery pack, and maximizes battery performance.
- Exquisite production technology and quality control: Following the ISO9001 quality management system, we have modern production lines and rigorous process flow. From cell sorting, module assembly to finished product testing, every link is strictly controlled to ensure the high consistency and reliability of the product.
- Multiple factory tests: Before leaving the factory, each battery must pass multiple tests including but not limited to full charge and discharge capacity test, internal resistance test, high and low temperature performance test, vibration test, safety performance test and long-term aging test to ensure that the product delivered to you is of excellent performance, stable and reliable.
12V 10Ah deep cycle battery usage tips
To get the best out of your LiFePO4 battery and ensure long-term safe and reliable operation, be sure to follow these important tips:
A LiFePO4 charger must be used, and a charging current of 5A (0.5C) is recommended. Be sure to confirm the positive (+) and negative (-) terminals before connecting. Reverse connection is strictly prohibited. Make sure the battery terminals and device cables are in good contact and firmly connected.
If the battery is to be stored for an extended period (more than 3 months), it is recommended to charge it to 50% – 70% state of charge (SOC). Do not disassemble, modify or puncture the battery. If you find that the battery is swollen, leaking, has an odor, or is abnormally hot, please stop using it immediately and contact us.
Get in touch
Get the best 12V 10Ah Lifepo4 battery price today
We will get back to you within 1 working day.
5-Year Warranty: enjoy 5-year worry-free after-sales service of Hongyitai battery quality.
FAQs for 12V 10Ah battery pack
The usage time of a 12V 10Ah battery depends mainly on the power consumption of the load. It can be calculated by the following formula:
Usage time (hours) = battery capacity (Ah) / load current (A).
For example, if the load is 5A, then:
Usage time = 10Ah / 5A = 2 hours.
Battery type: Make sure the charger is compatible with the battery type (e.g. lead-acid, lithium).
Charging current: The recommended charging current is between 1A and 2A.
Safety features: Choose a charger with automatic shutoff and overcharge protection to ensure safety.
Charging speed: Set fast or slow charging. Fast chargers can complete charging in a shorter time.
Through the above considerations, you can choose the best 12V 10Ah battery charger.
