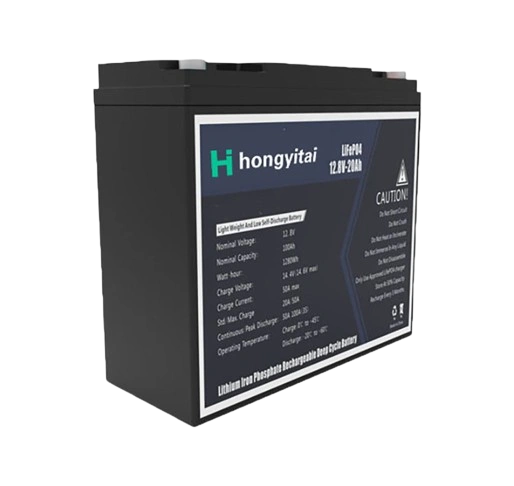

12V 20Ah Battery
This 12V 20Ah lithium iron phosphate deep cycle battery. We are Hongyitai, as a Chinese manufacturer, we provide you with factory direct prices. It has a cycle life of over 6000 times, far exceeding traditional lead-acid batteries, greatly reducing your long-term replacement costs and maintenance troubles. It is built with our advanced battery management system (BMS) to prevent overcharge, over-discharge, over-current and short circuit, ensuring safe and reliable operation. It is designed to easily replace existing 12V lead-acid battery systems, giving you a comprehensive upgrade in performance.
12.8V 20Ah Lithium Battery Specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 20Ah
-
Rated Energy 256Wh
-
Max Discharge Power 256W
-
Standard Charge Current 4A
-
Recommend Charge Current ≤10A
-
Max Charge Current 20A
-
Recommend Discharge Current ≤20A
-
Max Continue Discharge Current 30A
-
Peak Discharge Current (10S) 60A
-
Resistance ≤35mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 2.5Kg
-
Terminal M5 bolt
-
Housing ABS

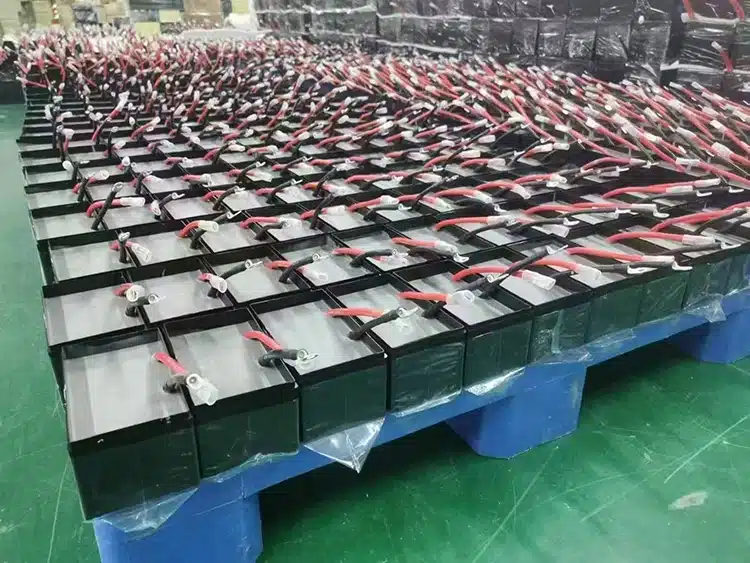

Hongyitai LiFePo4 Battery Factory
12V 20Ah battery pack charge & discharge curve
- Left are charge & discharge curve SOC %
- Energy capacity VS discharge rate

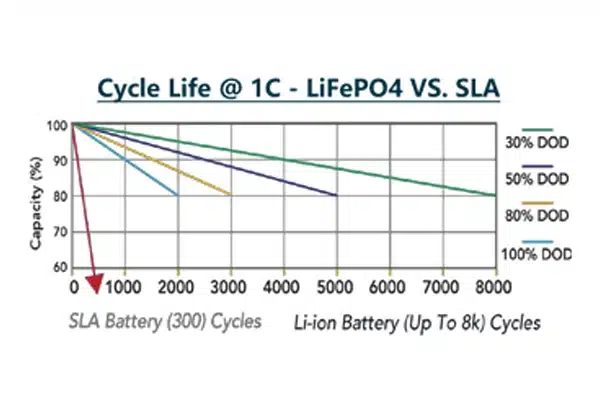

- Cycle life @1C – LiFePo4 VS SLA

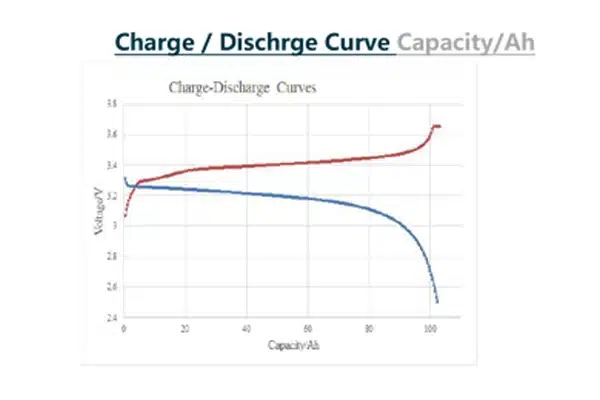

- Charge & discharge curve (capacity)
Why replace 12V 20Ah lead acid battery
Ultra-long cycle life. Its designed cycle life is more than 6,000 deep cycles. And what about the lead-acid battery of the same specification? Usually it is only 300-500 cycles. This means that within the life cycle of one of our lithium iron phosphate batteries, you may need to replace the lead-acid battery 6 to 10 times or even more.
Higher usable capacity. Our lithium iron phosphate battery is a brand new A-grade cell, absolutely not a disassembled cell. It can be safely deep discharged, usually providing 90% or even close to 100% of its nominal 20Ah capacity.
Reduced weight. This lithium iron phosphate battery weighs only about 1/3 of the same size lead-acid battery. It can be easily installed and carried in applications such as golf trolleys, RVs, boats or scooters.
Maintenance-free. You no longer need to check electrolyte levels, clean corroded terminals, or perform equalization charges. Our lithium iron phosphate batteries are completely sealed and do not require any routine maintenance.
High safety. The chemical properties of lithium iron phosphate are much safer than lead acid. There is no risk of acid leakage, and no explosive hydrogen gas is produced when charging. What’s more, we have built-in advanced battery management system (BMS) that can provide key protections such as overcharge, over discharge, over current and short circuit.
What can a 12V 20Ah battery power
This 12V 20Ah lithium iron phosphate battery, with its capacity, voltage and performance characteristics, is well suited for a variety of applications that require a reliable, lightweight power source. For example, motorcycle, fish finder, small trolling motors, security backup, kids’ electric ride-on cars, medical equipment, camping power, mobility scooter, and some DIY projects.
Why choose us, Hongyitai
Factory direct supply and price advantage. You are working directly with our lithium battery production factory. We have been deeply involved in Shenzhen, a region with a highly concentrated lithium battery industry, for more than 11 years. Without middlemen, our mature supply chain management and cost control brought by automated production can provide you with very competitive prices.
Strict quality control, quality assurance. We have and strictly implement standard production SOP processes. More importantly, we implement strict aging tests on batteries – both the battery cells and finished batteries will be aged in a high temperature box for 2-3 days, and then aged at room temperature for 2 days.
Comprehensive certification support. Our battery products are equipped with basic certifications such as MSDS, UN38.3, etc. that are required for shipment and transportation. We assist or cooperate with you in applying for other specific certifications required by your target market, such as UL, CE, CB, KC, etc.
Flexible customization capabilities. We support flexible customization, whether it is battery cell selection, BMS solution design, structural design, or meeting your “small batch, multiple varieties” order requirements, we have the ability and willingness to cooperate.
FAQs for 12V 20Ah Li ion Battery
The total energy of a 12V 20Ah battery is 12V * 20Ah = 240Wh.
If the device power is 10W, the battery duration is: 240Wh / 10W = 24H.
In short, the usage time depends on the power of the load.
Not recommended. LiFePO4 batteries require a dedicated charger because its charging voltage curve and cut-off conditions are different from those of lead-acid batteries. Using an unmatched charger may result in undercharging, overcharging, or even damage to the battery.
For this 20Ah battery, we recommend using a dedicated lithium iron phosphate charger with a charging current between 4A and 10A (i.e. 0.2C to 0.5C). This can achieve a good balance between charging speed and protecting battery life. Please refer to the product specification for the specific maximum allowable charging current.
Yes, you can. The battery management system (BMS) inside our 12V 20Ah lithium iron phosphate battery supports both series and parallel operation.
Series connection can increase voltage (e.g. 2 series connection for a 24V system, up to 16 series connection is supported, contact us for details).
Parallel connection can increase capacity (e.g. 2 parallel connection for a 12V 40Ah system, up to 4 parallel connection is supported).
We offer a standard 5-year warranty on this 12V 20Ah LiFePO4 battery.
