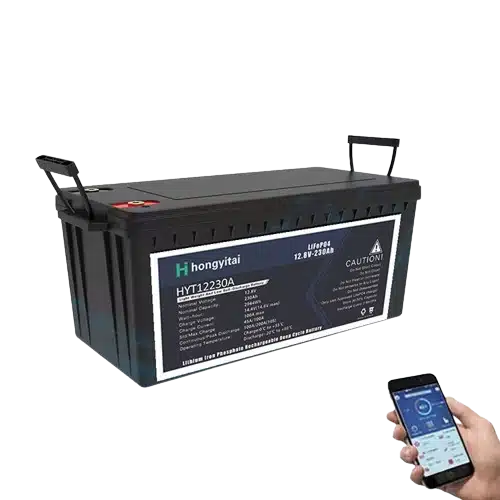

12V 230Ah LiFePo4 Battery
12.8V 230Ah Lithium Iron Phosphate Battery (LiFePO4) is an efficient, safe and long-life lithium ion battery. It is used in various energy storage devices.
12.8V 230Ah Battery Specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 230Ah
-
Rated Energy 2944Wh
-
Max Discharge Power 1280W
-
Standard Charge Current 45A
-
Recommend Charge Current ≤80A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤100A
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 200A
-
Resistance ≤10mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Size (Length * Width * Thick) 522*240*218mm
Hongyitai Batery Charging Curve

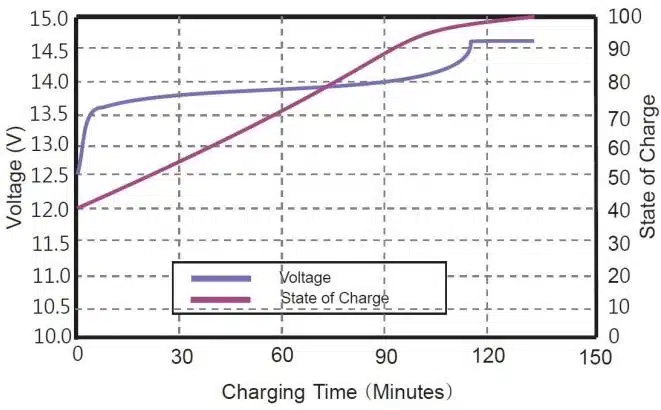

12.8V 230Ah lithium battery charging curve
On the left is the charging curve of a 12.8V 230Ah battery for state of charge curve @0.5C 25℃
Main applicates for Hongyitai 12.8V 230Ah lifepo4 battery
This lifepo4 battery series is a complete solution for lithium replacement of lead-acid batteries. It can be used in RV, electric car, electric boat, home energy storage, base station backup power, UPS and solar/wind energy storage systems.
12V 230Ah lithium battery Manufacturing Steps
#1 Cell Selection
Prepare 4 pieces of 3.2V 230Ah lithium iron phosphate batteries.
#2 Battery Sorting
Test the selected LFP battery cells and ensure them consistant from capacity, resistance and voltage.
#3 Arrangement & Assembly
Arrange 4S1P battery combination method to make designed module.
#4 Spot Welding
The nickel sheet connects the positive and negative electrodes of the battery to form the required 12.8V 230Ah battery.
#5 Solder BMS
Connect the precise protection board to ensure its overcharge, over-discharge and short-circuit protection functions.
#6 Housing & Aging
Embedded in the sheet metal casing, it activates the performance of the entire battery pack through charging and discharging.
FAQs for 12V 230Ah LiFePO4 Battery
12.8V 230Ah battery pack operating time mainly depends on the load current.
If the load current is 10A, then 23Ah / 10A = 23H. Considering efficiency and load changes, the actual operating time may vary.
Its power rating depends mainly on voltage and capacity: 12.8V * 230Ah = 2944Wh.
