12V 560Ah Battery

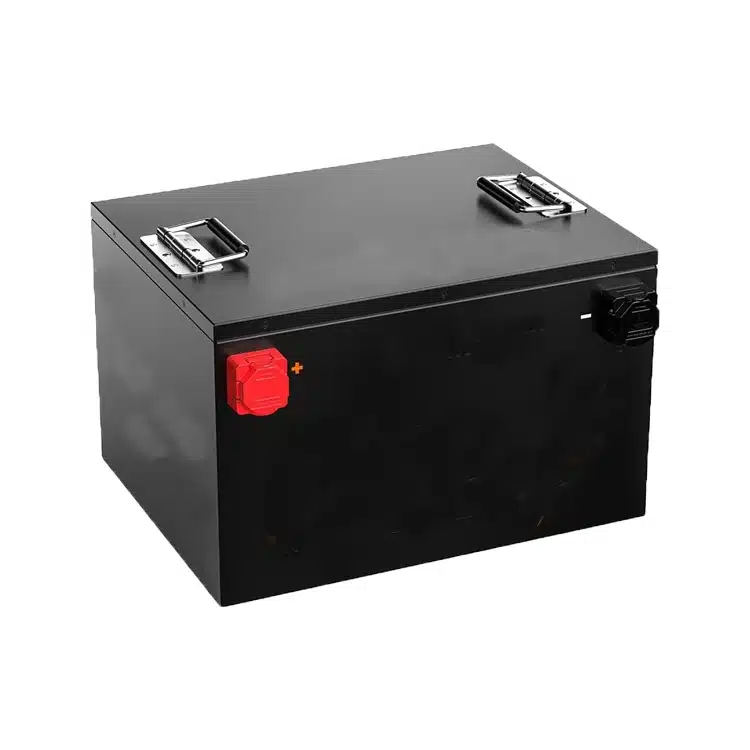

Hongyitai 12.8V 560Ah LiFePO4 battery has 7168Wh capacity and 3200W maximum continuous load power. No need to connect 2 12.8V 280Ah batteries in parallel, one 12.8V 560Ah battery can meet higher capacity requirements, eliminating the cumbersome connection steps. Supports up to 4P4S, with energy up to 114.68kWh. Very suitable for RV, home energy storage, off-grid system and solar power generation.
12V 560Ah lifepo4 battery specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 560Ah
-
Rated Energy 7168Wh
-
Max Discharge Power 3200W
-
Standard Charge Current 112A
-
Recommend Charge Current 112A
-
Max Charge Current 250A
-
Recommend Discharge Current 112A
-
Max Continue Discharge Current 230A
-
Peak Discharge Current (10S) 230A
-
Resistance ≤25mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 133 pounds
-
Size (Length * Width * Thick) 15.17 x 18.11 x 11.42 inch
-
Connector OT terminal
12V 560Ah LFP battery installation and use
Safety first, wear protective equipment and disconnect the power supply. Connect the positive and negative poles correctly, and do not connect them in reverse. Make sure the battery is firmly fixed and cannot be shaken at will. Ensure good ventilation and heat dissipation, and avoid high temperature environment.
It is recommended to use a charger for lithium iron phosphate batteries, check the battery status regularly, and avoid long-term deep discharge.
What can 12V 560Ah lithium battery work
12V 560Ah lfp battery, maximum energy 7168Wh, lithium iron phosphate battery is very suitable for solar systems, RVs, off-grid, home energy storage.
Why choose 12V 560Ah LiFePO4 battery

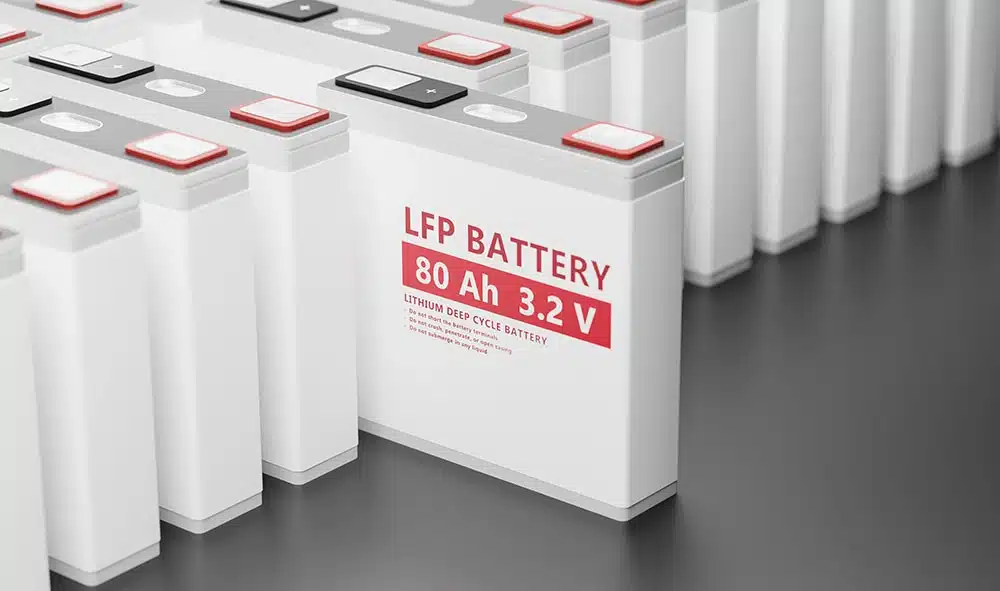

Hongyitai 12V 560Ah Lithium Battery uses higher energy density Class A LiFePO4 cells in our battery packs. Compared to 200-500 cycles and 3 years of life for lead acid batteries, 12V 560Ah LiFePO4 Lithium Battery has a life of 10 years, 4000+ cycles at 100% DOD, 6000 cycles at 80% DOD, and 15000 cycles at 60% DOD.
High-quality SPCC sheet metal casing: 12.8V 560Ah LiFePO4 lithium battery adopts SPCC casing, which is stronger than ABS casing. The metal casing helps to dissipate heat under continuous heavy load, which is beneficial to prolong battery life.
Get in touch
Get the 12v 560ah LFP battery price
Hongyitai will get back to you within 1 working day. We also provide compatible charger for you.
