12V 5Ah Battery
Are you still using 12.8V 5Ah lead-acid batteries? Here you can find upgraded lithium iron phosphate batteries, which have a lifespan of more than 10 years and are half the weight. This allows you to say goodbye to the trouble of frequent charging.
The biggest highlight of Hongyitai 12V 5Ah F2 deep cycle battery is its light weight, durability and high power. Get factory directly price today.
12V 5Ah rechargeable battery specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 5Ah
-
Rated Energy 60Wh
-
Max Discharge Power 60W
-
Standard Charge Current 2.5A
-
Recommend Charge Current ≤2.5A
-
Max Charge Current 5A
-
Recommend Discharge Current ≤5A
-
Max Continue Discharge Current 10A
-
Peak Discharge Current (10S) 10A
-
Resistance ≤35mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 1.6 Pounds
-
Dimensions 2.76"D x 3.54"W x 3.98"H
-
Terminal F2
-
Battery cell composition Lithium ion
12V 5Ah lifepo4 battery benefits
New batteries have a lifespan of 10+ years / 3000+ cycles” compared to traditional batteries’ 1-3 years / 200-500 cycles. This saves the hassle and cost of frequent replacements.
The weight is only 1.6 Pounds, which is 50-70% lighter. It makes it easy to carry, especially suitable for portable devices and children’s toys.
The output is more stable and can discharge deeper, so your device performs better.
Built-in intelligent BMS. All-round protection: overcharge, over discharge, over current, short circuit, high temperature.
Built-in intelligent BMS protection, stable chemical properties. Multiple safety guarantees eliminate concerns about electricity use.
The initial investment is slightly higher, but the long-term total cost of ownership (TCO) is lower.
Please be sure to check the physical dimensions and contact type. We can provide both F2 and F1 contacts.
For best life, a LiFePO4 compatible charger or setup may be required rather than a lead acid charger.
Best 12v 5ah battery application
Due to the characteristics of lithium iron phosphate batteries, such as long life, light weight, and high safety, it is often used in home alarm systems, children’s electric toy cars, motorcycles, atv, motorcycle, bike, scooter, portable electronic devices, fish finders, emergency lighting, etc., thus truly improving your experience.

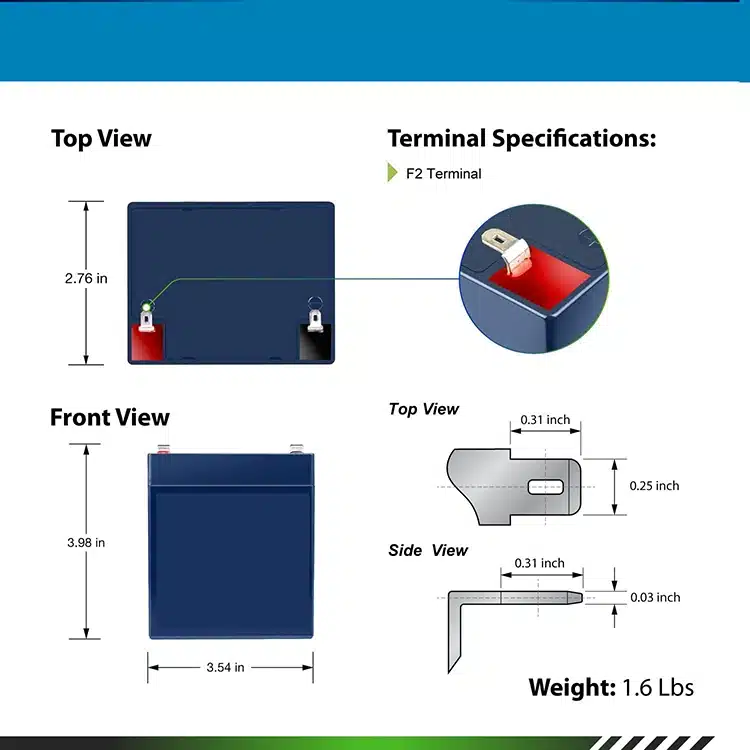

12V 5Ah battery dimensions & terminal
Before you purchase, you need to confirm whether the size and terminals match.
The dimensions of our 12V 5Ah lithium iron phosphate battery are 2.76″D x 3.54″W x 3.98″H. Please measure the dimensions of your original battery compartment to see if the new battery can be installed in it. It is best to reserve some space.
Ours is an F2 plug-in terminal. If your device originally uses an F1 terminal, you may need to purchase an F2 to F1 converter.
Regarding voltage, this is a 12.8V lifepo4 battery with a nominal voltage that can power all 12V devices.
How to charge 12v 5ah battery
Many systems designed to charge 12V lead-acid batteries, such as your home alarm host, small UPS, or some motorcycle/toy car charging ports, have output voltages that can charge lithium iron phosphate batteries because the voltage ranges overlap.
However, we strongly recommend that you use a dedicated charger for lithium iron phosphate (LiFePO4), or a smart charger that has multiple modes and explicitly supports LiFePO4 charging mode.
Dedicated chargers can provide the most accurate charging voltage curve (usually constant current to constant voltage, CC/CV) that is most suitable for lithium iron phosphate batteries, ensuring that the battery can be fully charged safely and quickly and reach its nominal cycle life.
Using an unmatched charger, especially those lead-acid chargers with imprecise voltage control or special recovery modes (such as equalization charging), runs the risk of overcharging, which may damage the battery or even cause safety issues.
It is not necessary or recommended to float charge the lithium iron phosphate battery after it is fully charged. If your charger cannot completely turn off the float charge function, please set its voltage as low as possible, such as around 13.5V to 13.6V.
FAQs for 12.8V 5Ah Lifepo4 battery
It all depends on how much current (power) the device draws.
If the device draws 1 amp (A), it should theoretically last 5 hours (5Ah / 1A = 5h).
If the device draws 0.5 amps (A), it should theoretically last 10 hours (5Ah / 0.5A = 10h).
This mainly depends on how much current the charger outputs.
If you use a 1 ampere (A) charger to charge, it theoretically takes about 5 hours to fully charge.
Of course, you also have to consider the possibility of device damage during charging.
Get in touch
Get the 12V 5Ah Lifepo4 battery price today
We will get back to you within 1 working day. We are willing to custom 12.8V lifepo4 battery pack for your specific requests.
