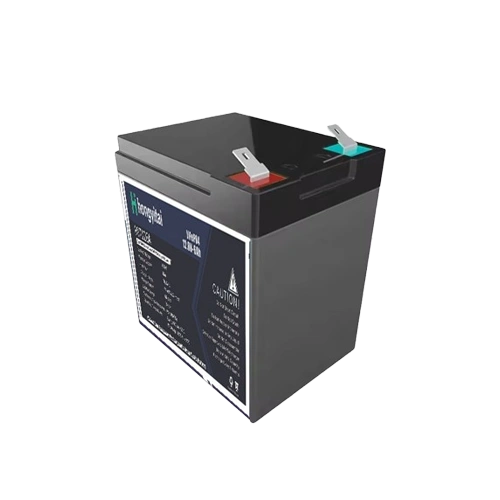

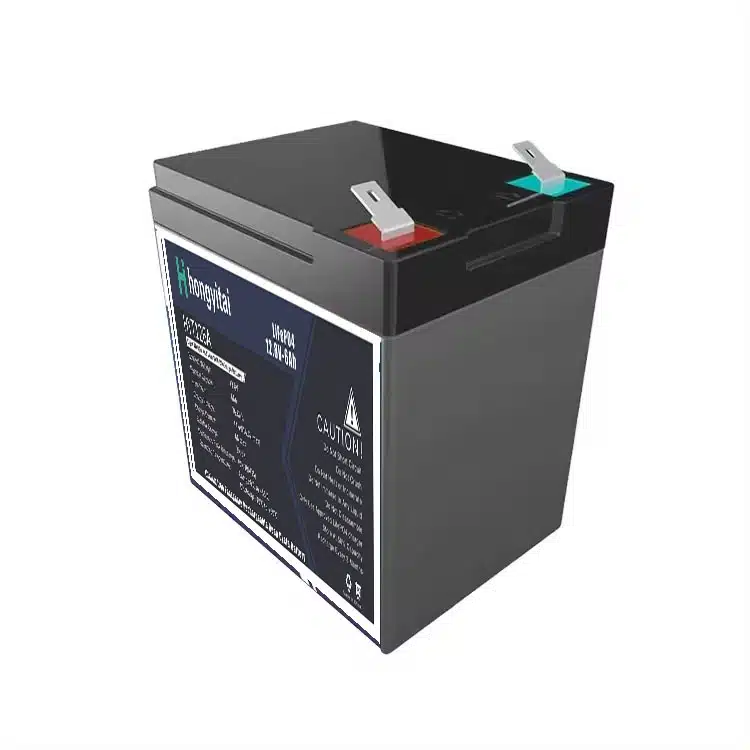

12V 6Ah LiFePo4 Battery
The Hongyitai Lithium Iron Phosphate (LiFePO4) battery model is the safest 12V 6Ah battery. Highly sought after due to its compact size, lightweight design, and excellent performance, it is ideal for wireless communication and medical equipment but requires high-performance applications.
12.8V 6Ah Battery Specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 6Ah
-
Rated Energy 76.8Wh
-
Max Discharge Power 128W
-
Standard Charge Current 1.2A
-
Recommend Charge Current 3A
-
Max Charge Current 6A
-
Recommend Discharge Current ≤6A
-
Max Continue Discharge Current 10A
-
Peak Discharge Current (10S) 20A
-
Resistance ≤50mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 0.7Kg
-
Size (Length * Width * Thick) 90*70*101mm
Hongyitai Batery Charging Curve
12V 6Ah lithium battery charging curve
On the left is the charging curve of a 12.8V 6Ah lithium ion battery at 0.5C, 25°C. It can be seen that the charging curve is pretty stable, with the main voltage range between 13.5V and 14.4V.
Main applicates for Hongyitai 12V 6Ah rechargeable battery
- Portable devices: such as mini speakers, ultrasound machines, emergency lights, etc.
- Backup power supply: used for small UPS systems, office backup power sources.
- Solar energy storage: storage units for small solar energy systems.
- Outdoor activities: such as RV, fishing, lighting, and other activities requiring portable power sources.
How we made 12.8V 6Ah deep cycle battery
LiFePO4 Cell Matching: LiFePO4 Cell Matching: This is a 4S1P configuration. Ensure each LFP battery cell voltage, capacity and internal resistance within certain ranges.

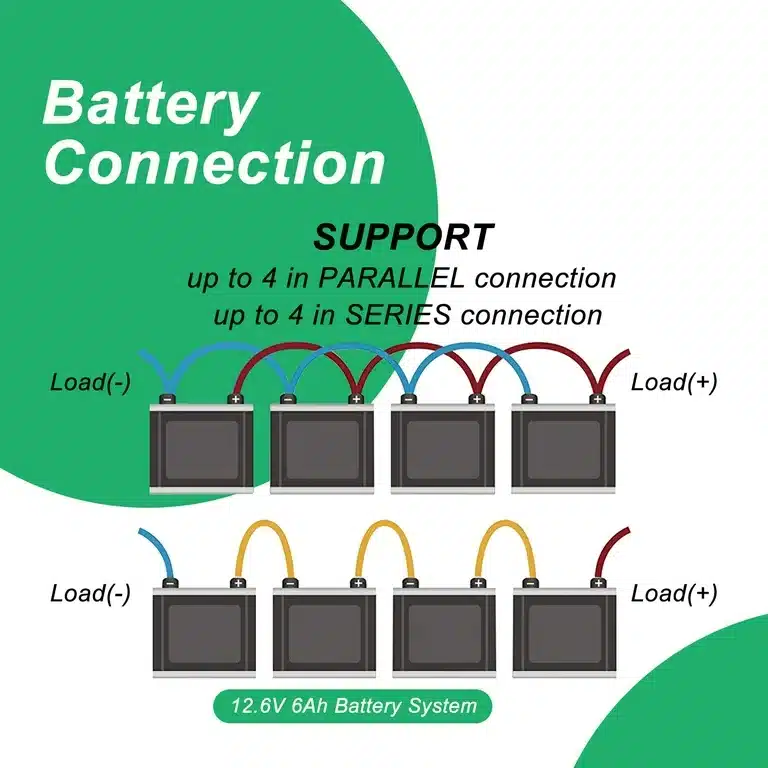

Series combination: Each battery is connected in series, with the positive terminal of one battery connected to the negative terminal of the next, forming a 4S1P configuration.
Protection board BMS: The protection board operates within a voltage range of 10V to 14.6V, providing functions such as overcharge, overdischarge, overcurrent, and short-circuit protection.
Protective cover: embedded in a fixed ABS housing to ensure correct positive and negative standard F2 spade terminals.
Aging and testing: Charge and discharge cycles at a rate of 0.5C. Activate internal chemical composition and test voltage, internal resistance, capacity, etc.
FAQs for 12V 6Ah Battery
Hongyitai LiFePO4 lithium batteries can be used for 6000 life cycles. According to usage, it can be used for 10 years or longer. Although the initial cost of Hongyitai LFP batteries is higher, in the long run, upgraded batteries can save you a lot of costs.
Yes. LiFePO4 is a safe chemical substance and currently the most stable type of battery. Hongyitai lithium batteries have passed UL certification, achieving the highest safety and sustainability standards. All HYT LiFePO4 batteries are equipped with an internal battery management system that prevents undervoltage during discharge, overvoltage during charging, overcurrent during discharge, overheating during charging and discharging, and short circuit protection, protecting battery cells from damage.
May not. Hongyitai 12.8V 6Ah LFP battery is not used as a starter battery, but for energy storage. Please contact us for the specific jump starter battery.
It is recommended to store Hongyitai LiFePO4 batteries at a state of charge (SOC) of 40-60%. If the battery is stored for a long time, please charge it at least once every 3 months. Recommended storage environment: 10 ℃~35 ℃ (50 ℉~95 ℉), 45%~75% relative humidity.
