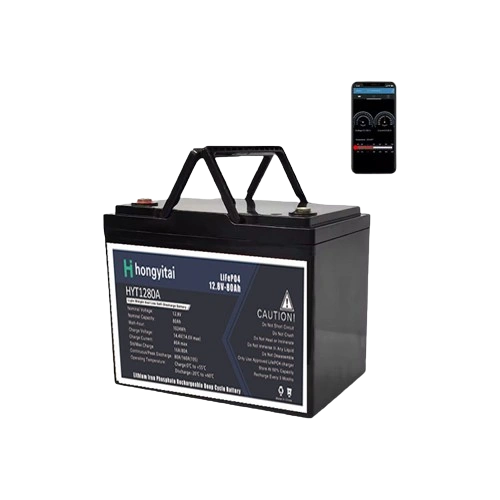

12V 80Ah Battery
Have you noticed that the battery life of your lead-acid battery is decreasing rapidly? The frequency of charging has increased, and some open lead-acid batteries need to be refilled with water. This is the same feeling of traditional lead-acid battery users. This is mainly due to the limitations of the technology itself.
However, there is a better choice now. Our 12v 80ah lithium ion battery has newer technology and stronger performance. We are designed to perfectly replace the traditional 12V 80Ah lead-acid battery you may be using now, solving the troubles we just mentioned. Contact us for the latest price.
12.8V 80Ah LiFePo4 Battery Specs
-
Work Voltage Range 10.8~14.6V
-
Nominal Voltage 12.8V
-
Nominal Capacity 80Ah
-
Rated Energy 1024Wh
-
Max Discharge Power 1024W
-
Standard Charge Current 16A
-
Recommend Charge Current ≤40A
-
Max Charge Current 80A
-
Recommend Discharge Current ≤80A
-
Max Continue Discharge Current 80A
-
Peak Discharge Current (10S) 160A
-
Resistance ≤12mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 9.5Kg
-
Size (Length * Width * Thick) 260*168*210mm
Hongyitai Battery Factory
12V 80Ah deep cycle battery discharge curve
Left image is our 12.8V 80Ah lithium battery discharge curve at -20℃, -10℃, 0℃, 23℃ and 45℃.
LiFePO4 overwhelming advantage over lead-acid
Let’s take the 12V 80Ah battery for comparison. Our Hongyitai lithium iron phosphate battery is like the difference between a smartphone and an old rotary phone, a complete technological upgrade compared to a traditional lead-acid battery.
The most obvious thing is the weight reduction. Our 12V 80Ah lithium ion battery weighs only 9.5Kg, making installation and transportation much easier. If installed in a motorhome or boat, it can also reduce a lot of burden on them.
Longer use. Ordinary lead-acid batteries can only be charged and discharged a few hundred times, and may feel worn out after one or two years. Now it can be cycled more than 6,000 times and can be used for more than 10 years.
Over 98% usable capacity. Lead-acid batteries can actually only discharge half of their capacity, 40Ah. But this deep cycle battery can do almost 100% of its usable capacity.
Fast charging and high efficiency. It supports 2C rate charging. If there are enough solar panels, it can be fully charged quickly during the day to provide you with electricity at night.
No worries, no trouble, no maintenance. No need to add water, no need to check for corrosion.
Hongyitai 12V 80Ah LiFePO4 battery application
Basically, as long as you are currently using 12V 80Ah lead-acid batteries, no matter what equipment you are using – from power tools and access control systems to RVs, electric marines, and energy storage, mobility scooter, you can immediately feel the above-mentioned tangible benefits by replacing them with Hongyitai lithium iron phosphate batteries: lighter, longer lasting, more actual power, faster charging, completely maintenance-free, safer and more environmentally friendly, and more cost-effective in the long run. This is a comprehensive experience upgrade.
How to select and install 12V 80Ah lithium battery
The size of our battery is 260*168*210mm. We have designed it to be close to the size of common lead-acid batteries on the market, such as Group 24 and 27. In many cases, it can be directly replaced.
Its core is the BMS (Battery Management System). It is like the brain of the battery, providing overcharge, over-discharge, over-current, short circuit, high temperature, low temperature protection, and cell balancing to ensure that every bit of energy is used safely and efficiently, which is the key to battery safety and longevity.
Most of the old chargers for charging lead-acid batteries are not suitable for charging lithium iron phosphate directly. It is best to choose a lithium iron phosphate smart charger with a charging voltage of 14.2V ~ 14.6V.
The lithium iron phosphate battery is solid and has no liquid inside, so it can be installed in any direction, standing, lying, or sideways. It supports multiple installation orientations.
If you consider adding more series and parallels to increase the power, theoretically, it supports up to 16 series and 4 parallels. Contact us to get the best combination.
FAQs for 12V 80Ah LFP batteries
The duration of the battery will be affected by the actual usage conditions and load size.
Under lower load, such as 40W, it can be used for about 24 hours.
12V *80Ah / 40W = 24H.
Generally speaking, the charging time can be calculated using the following formula: Ah/A.
For example, if a 5A charger is used, a full charge theoretically requires: 80Ah / 5A = 16H.
Very safe. Lithium iron phosphate (LiFePO4) is a very stable material. Our batteries have an intelligent protection system (BMS) that acts like a guard to automatically prevent various possible problems such as overcharging, over-discharging, short circuit, overheating, etc.
Most old lead-acid chargers are not suitable for directly charging lithium iron phosphate batteries because the charging voltage and method are different, which will affect the battery life and performance.
