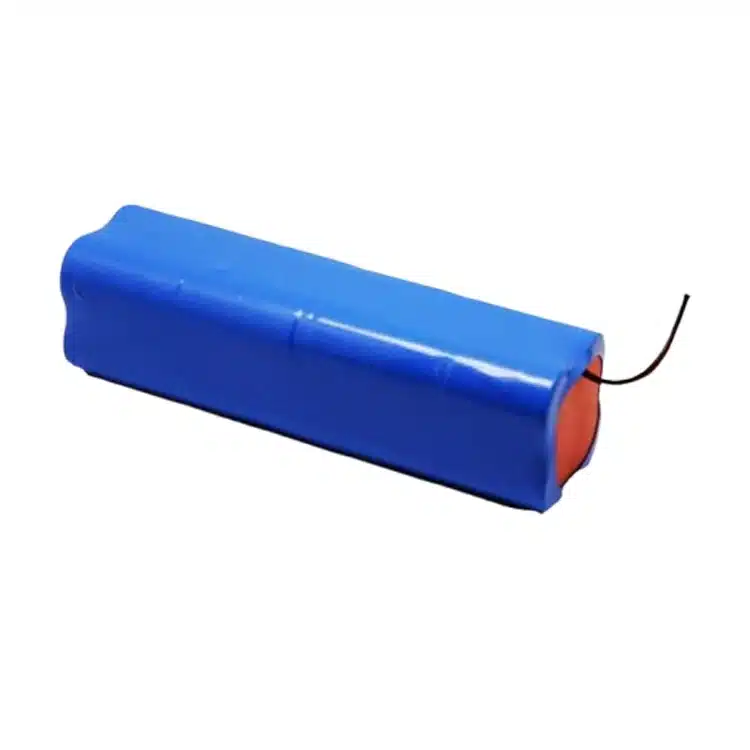

14.8V 5.2Ah 18650 battery pack
This is a 4S2P Li-ion rechargeable battery pack from Hongyitai with an integrated battery management system, a nominal voltage of 14.8V, a rated capacity of 5.2Ah, with 15cm long 18AWG exposed wires for charging and discharging (comes with bare wires by default, but the connector can be customized accordingly), charging and discharging from the same terminal.
This is a typical OEM battery pack, customized for 12V/14.8V/14.4V applications. If you need to modify an existing design or find a new custom solution, please contact us.
- UL1642
- IEC62133
- UN38.3
- MSDS
18650 14.8V 5.2Ah lithium battery specs
-
Charging Voltage 16.8V
-
Nominal Voltage 14.8V
-
Nominal Capacity 5.2Ah
-
Discharge Cut-off Voltage 10.8V
-
Charge Current 1A
-
Max Charge Current 5.2A
-
Discharge Current 2A
-
Max Discharge Current 5.2A
-
Operatingt Tmperature -20~60℃
-
Dimension 135 x 38 x 38 mm
-
Weight 220 grams
-
Lifespan 500
-
PCM Yes
-
Customization Yes
18650 battery pack factory
18650 14.8V 5200mAh battery pack configuration
18650 4S2P 14.8V 5.2Ah Li-ion battery pack consists of 8 18650 cells. First, 4 18650 cells are matched by voltage, internal resistance and capacity to form a 4S1P battery module. Then, 2 modules are connected in parallel to form a 4S2P battery pack. After that, 5.2A protection board is welded. All welding points need to be insulated in the middle. Finally, it is wrapped with blue PVC.
Our batteries are equipped with a comprehensive battery management system (BMS) to provide advanced protection functions, including overcharge, over discharge, over current and short circuit protection. This is perfect for 14.8V battery packs for bicycle lighting, remote control toys, robots, laptops and DVD external batteries.
18650 14.8V 5.2Ah battery PCM
It has a wide operating voltage range and stable performance: Our battery output voltage range is 10.8V~16.8V, which can provide stable and consistent power to your 12V appliances, thereby achieving optimal performance and enhancing your working experience. Whether you are pursuing other sizes and terminals, our factory can meet your needs.
