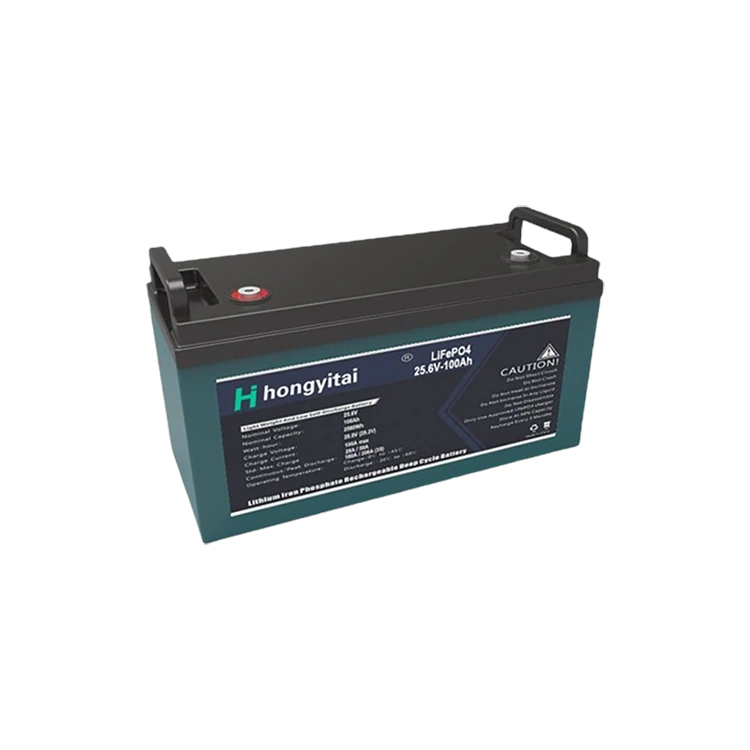

24V 100Ah LiFePo4 Battery
The 24V 100ah Lifepo4 lithium battery is assembled from UL certified automotive grade LiFePO4 battery cells, which have higher energy density, more stable performance, greater power, and extremely low self discharge rate.
6000+ rechargeable battery, maximum load power of 2560W, suitable for RVs, campers, solar energy, ships, and off grid. The service life is 10 years, which is three times the 3-year service life of lead-acid batteries.
24V 100Ah Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 100Ah
-
Rated Energy 2560Wh
-
Max Discharge Power 2560W
-
Standard Charge Current 20A
-
Recommend Charge Current ≤50A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤100A
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 200A
-
Resistance ≤15mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Size (Length * Width * Thick) 522*240*218mm
Hongyitai Batery Charging Curve
24V 100Ah li ion battery charging curve

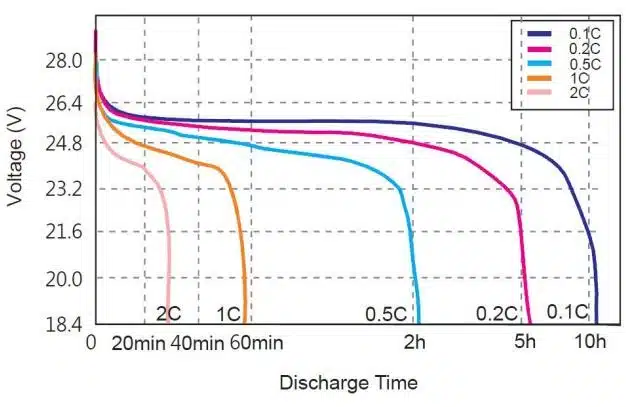

On the right is different rate discharge curve @25℃ for 24V 100Ah lithium battery.
Main applicates for Hongyitai 25.6V 100Ah lifepo4 battery
Marine system: trolling motors for boats and kayaks, general marine power applications.
Recreational vehicles (RVs) and camping: RV battery.
Off-grid and renewable energy: wind & solar energy storage systems.
Low speed vehicle: Electric scooters, motorcycle and motorcycle.
Backup power: home and commercial emergency backup power & UPS.
How we make 24V 100Ah lithium battery
- Matching set of high quality LiFePO4 cells. For a 24V 100Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 12.5Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 100A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
Lithium-ion battery production process
#1 Cell Selection
Select the quantity for lifepo4 battery cell of 3.2V 12.5Ah. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack into metal casing while charging and discharging to activate the battery pack performance.
Get in touch
Get the 24V 100Ah Lifepo4 battery quote today
- It alloww you to connect up to 8 batteries in parallel or 2 batteries in series for flexible power settings.
- The battery has undergone rigorous testing and meets excellent standards to ensure long-lasting power supply.
- Using solar energy is easy. It can help you build systems faster and longer.
