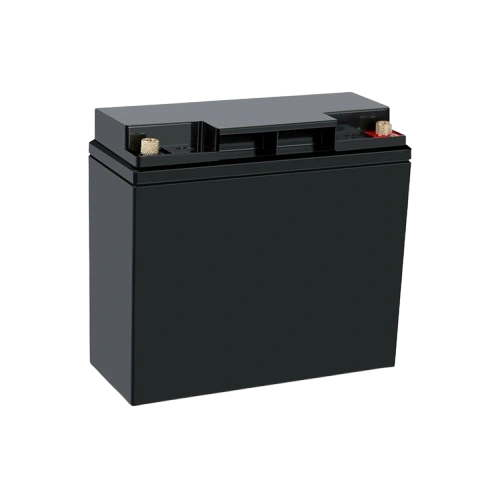

24V 10Ah Battery
Compared with lead acid battery, this 24V 10Ah lithium ion battery has more efficient energy output, this series battery can accept 1C continuous charge/discharge current, which can fully charge the battery in one hour. 24v 10ah lithium battery suits for mobility scooter, wheelchair and e bicycle. Perfect to replace lead acid battery.
24V 10Ah lithium battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 10Ah
-
Rated Energy 256Wh
-
Max Discharge Power 256W
-
Standard Charge Current 5A
-
Recommend Charge Current ≤2A
-
Max Charge Current 10A
-
Recommend Discharge Current ≤10A
-
Max Continue Discharge Current 10A
-
Peak Discharge Current (10S) 40A
-
Resistance ≤70mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Size (Length * Width * Thick) 181*76*170mm
Hongyitai Batery Charging Curve

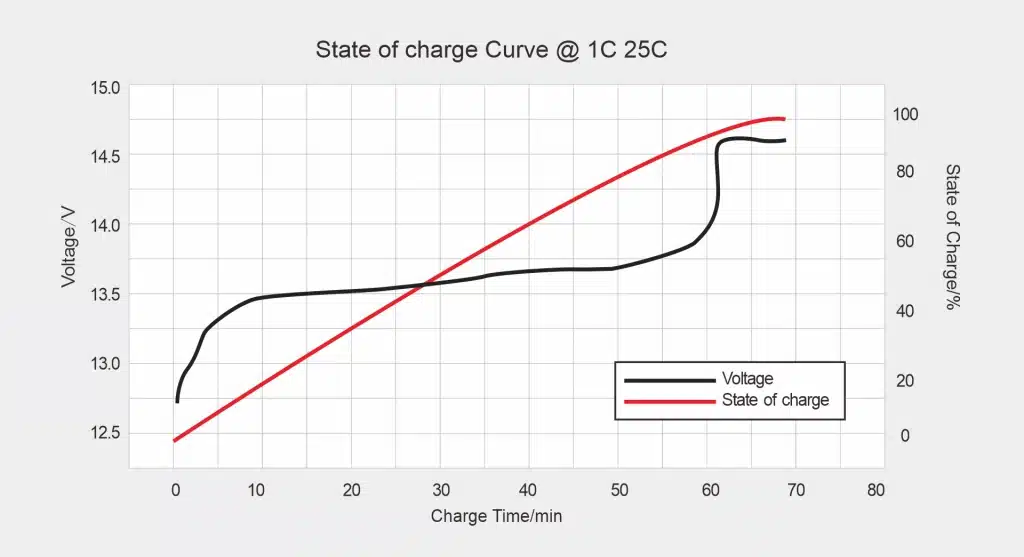

24V 10Ah lifepo4 battery SOC curve
On the right is state of charge curve @1C 25℃.
Applications for Hongyitai 24V 10Ah lifepo4 battery pack
24V 10Ah lithium ion battery pack are suitable for powering mobility scooter, small boats and kayaks, communications equipment such as ham radios, e-bikes, e-scooters, wheelchair, and general purpose equipment.
How we produce 24V 10Ah rechargeable battery
- Matching set of high quality LiFePO4 cells. For a 24V 10Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 10Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 10A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
