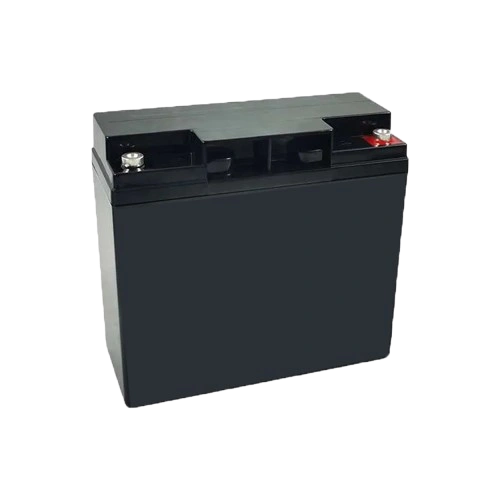

24V 12Ah Battery
24V 12Ah lithium battery is a common lithium iron phosphate battery pack, which is often used to replace lead-acid batteries and is widely used in power tools, small electric vehicles, energy storage equipment and other fields.
More than 3000 cycles at Lab test condition, longer serving time ranges helps you to extend the serving life and help final users to reduce the battery replacement costs.
24V 12Ah Lithium Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 12Ah
-
Rated Energy 307.2Wh
-
Max Discharge Power 307.2W
-
Standard Charge Current 6A
-
Recommend Charge Current ≤12A
-
Max Charge Current 12A
-
Recommend Discharge Current ≤12A
-
Max Continue Discharge Current 24A
-
Peak Discharge Current (10S) 36A
-
Resistance ≤50mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Size (Length * Width * Thick) 181*77*170mm
Hongyitai Batery Charging Curve

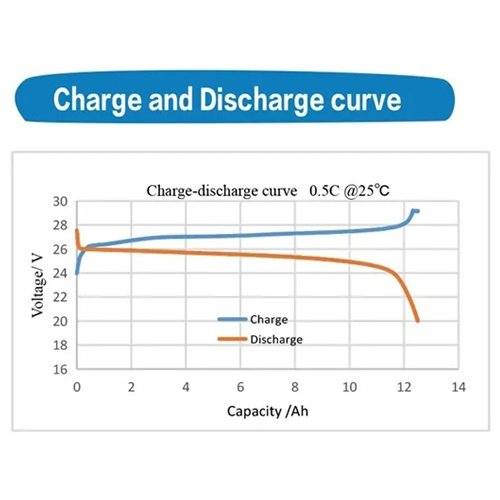

24V 12Ah Lifepo4 Battery Curve

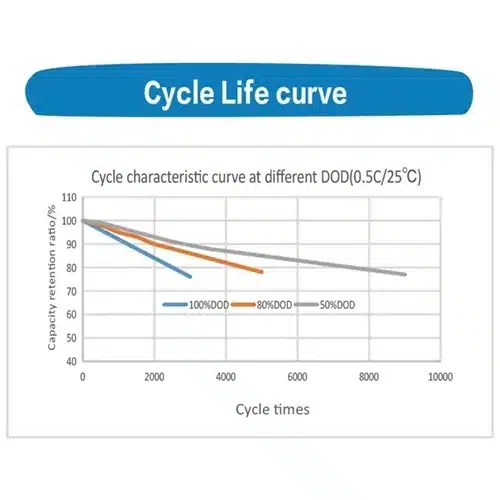

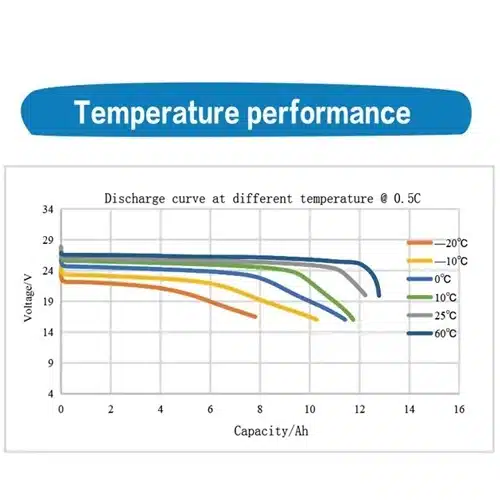

Right images are 25.6V 12Ah LFP battery charge and discharge curve, different temperature curve and cycle life curves.
24V 12Ah LFP battery applications
24V lithium iron phosphate (LiFePO4) batteries are widely used in various fields below due to their high energy density, long cycle life and compact size.
- Renewable Energy Systems: Used to store energy in solar and wind systems for emergency and nighttime lighting.
- LED lighting and alarm systems: Used in LED lighting, solar street lights, alarm systems, and can replace lead-acid batteries.
- Robotics: For AGVs (Automated Guided Vehicles), AMRs (Autonomous Mobile Robots), and unmanned vehicles.
How we make 24V 12Ah lithium battery
- Matching set of high quality LiFePO4 cells. For a 24V 12Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 12Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 36A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
Get in touch
Get the 24V 12Ah battery price
- It allows you to connect up to 8 batteries in parallel or 2 batteries in series for flexible power settings.
- The battery has undergone rigorous testing and meets excellent standards to ensure long-lasting power supply.
- Hongyitai can custom 25.6V 12Ah LIFEPO4 battery as per your requests.
