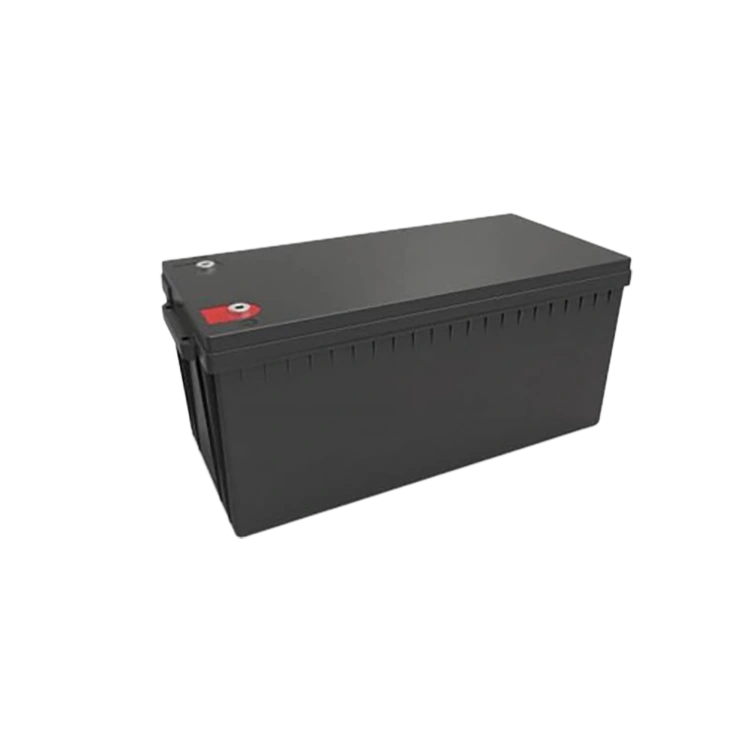

24V 150Ah LiFePo4 Battery
25.6V 150Ah Lithium Iron Phosphate Battery (LiFePO4) is an efficient, safe and long-life lithium ion battery. It is used in various portable devices.
24V 150Ah Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 150Ah
-
Rated Energy 3840Wh
-
Max Discharge Power 2560W
-
Standard Charge Current 30A
-
Recommend Charge Current ≤50A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤100A
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 200A
-
Resistance ≤15mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 32Kg
-
Size (Length * Width * Thick) 522*240*218mm
Hongyitai Batery Charging Curve
24V 150Ah lithium battery charging curve

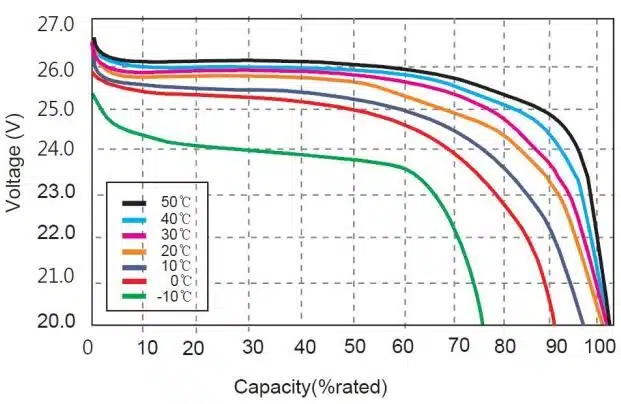

On the left is different temperature discharge curve @0.5C for 24V 150Ah lithium battery.
Main applicates for Hongyitai 25.6V 150Ah lifepo4 battery
Marine system: trolling motors for boats and kayaks, general marine power applications.
Recreational vehicles (RVs) and camping: RV battery.
Renewable energy: wind & solar energy storage systems, off-grid energy storage.
Low speed vehicle: Electric scooters, motorcycle, motorcycle and floor cleaning machines.
Industrial backup power: home and commercial emergency backup power & UPS.
How we make 24V 150Ah lithium battery
- Matching set of high quality LiFePO4 cells. For a 24V 150Ah lithium ion battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 18.75Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 100A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
Lithium-ion battery production process
#1 Cell Selection
Select the number of 18650 cells or LiFePO4 cells we need. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in a PVC or metal casing while charging and discharging to activate the battery pack performance.
