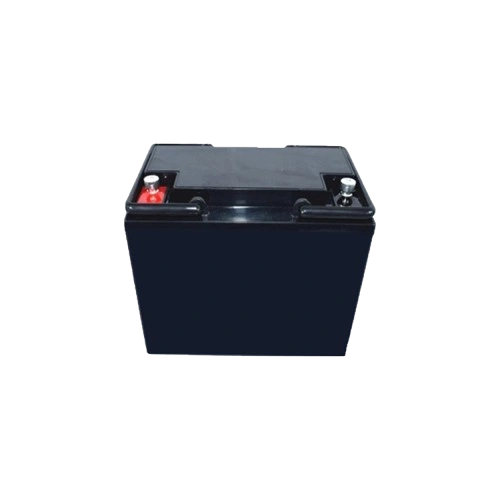

24V 20Ah Battery
24V 20Ah Lifepo4 Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 20Ah
-
Rated Energy 512Wh
-
Max Discharge Power 512W
-
Standard Charge Current 10A
-
Recommend Charge Current ≤20A
-
Max Charge Current 20A
-
Recommend Discharge Current ≤20A
-
Max Continue Discharge Current 40A
-
Peak Discharge Current (10S) 60A
-
Resistance ≤40mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Size (Length * Width * Thick) 197*165*170mm
Hongyitai Batery Charging Curve

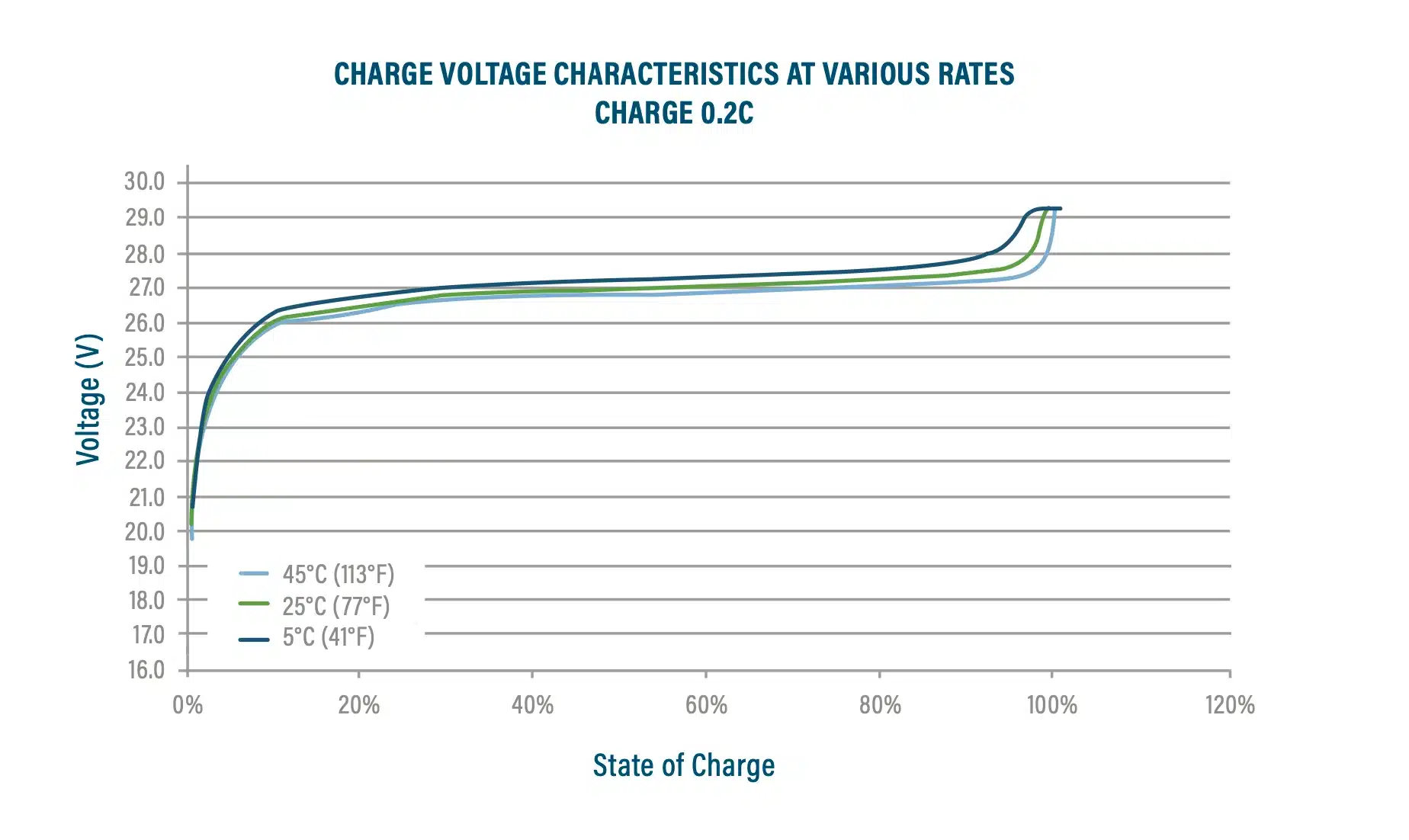

24V 20Ah lithium battery charge curve
On the right is charge curve at different temperature for 25.2V 20Ah lithium battery.

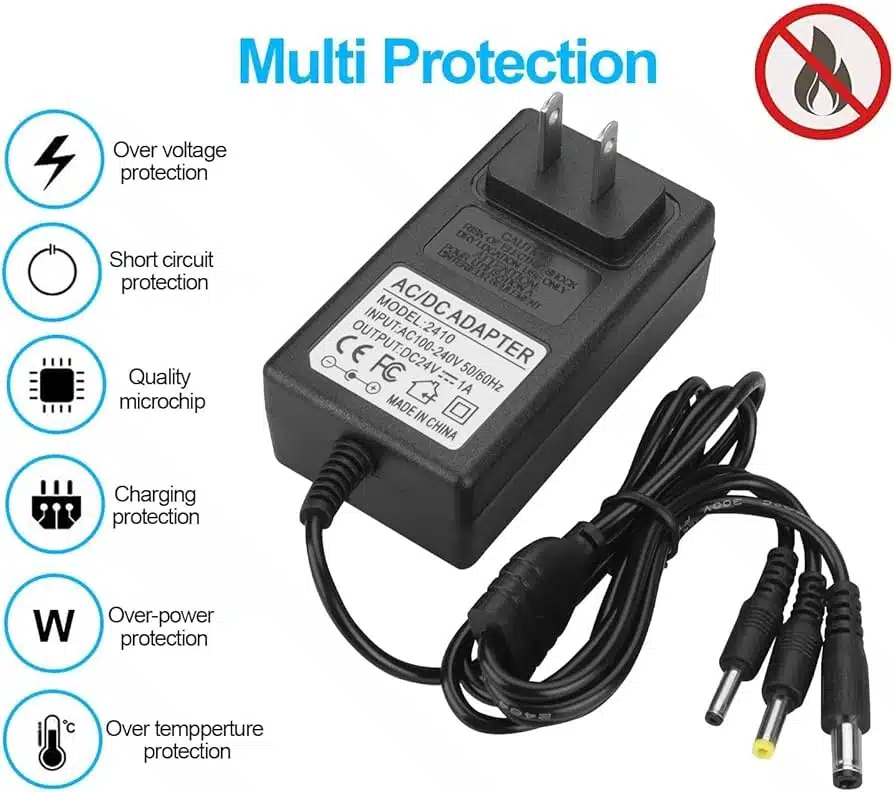

24V lithium battery charger
Our 24v lithium battery charger features efficient power management, this charger is designed to quickly charge large numbers of LiFePO4 batteries, designed to extend their life. Designed to operate in extreme environments, including exposure to water, this charger is suitable for the harshest conditions.
It is designed specifically for our Hongyitai LiFePO4 batteries and is not recommended for use with lead acid or SLA batteries due to their high power output. It features a high tensile strength aluminum housing that cools quickly and provides a 20A output for fast and efficient charging. Contact us for more information.
How we produce 24V 20Ah lifepo4 battery pack
- Matching set of high quality LiFePO4 cells. For a 24V 20Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 20Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 40A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
Get in touch
Get the 24V 20Ah lithium ion battery price
- Our battery packs are customized, so the main data can be changed by customer’s requirements.
- OEM & ODM battery can customize according to your request.
- Respond in 24 hours to any inquiry on our battery packs.
