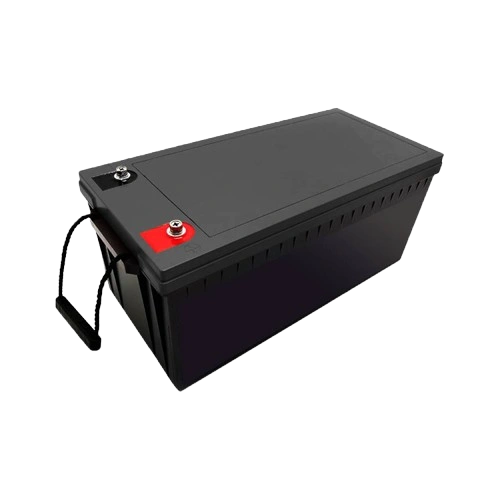

24V 300Ah Battery
Hongyitai 24V 300Ah lithium battery is a high-capacity energy storage solution designed for demanding applications. This battery uses Class A LiFePO4 cells with a nominal energy output of 7680Wh, which is ideal for RVs, marine systems, and solar energy storage.
With a maximum continuous charge current of up to 200A and a discharge current of up to 200A, this battery ensures efficient power management based on your needs. It is an ideal choice for OEM, ODM, and customization for reliable and customizable power solutions.
24V 300Ah Lifepo4 Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 300Ah
-
Rated Energy 7680Wh
-
Max Discharge Power 7680W
-
Standard Charge Current 60A
-
Recommend Charge Current ≤100A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤60A
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 300A
-
Resistance ≤10mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 45Kg
-
Size (Length * Width * Thick) 522 x 240 x 218 mm
Hongyitai Batery Charging Curve

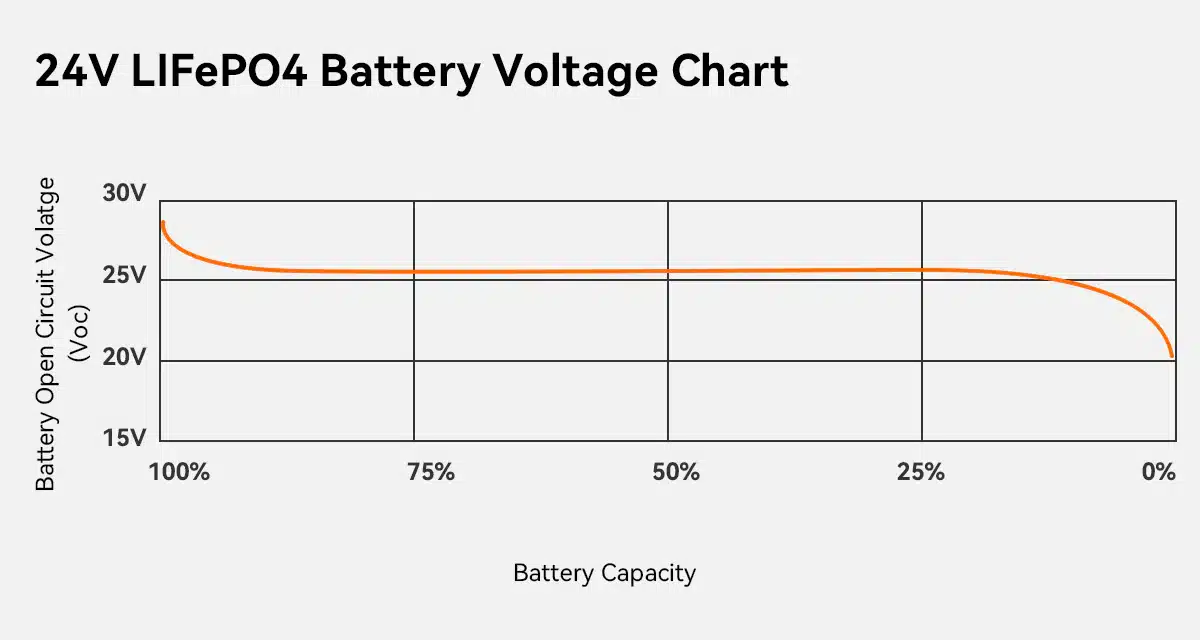

24V 300Ah lithium battery discharge curve
On the right is 24V 300Ah lithium-ion battery discharge voltage chart. (Open circuit voltage VS battery capacity)
24V 300Ah deep cycle battery application
Solar energy systems: Used in solar energy storage systems that can effectively store electricity generated by solar energy for home or commercial use.
Electric vehicles: such as golf carts, electric scooters and electric cars, these batteries have high energy density and reliable discharge capabilities.
Recreational Vehicles (RVs) and Boats: Due to the lightness and durability of lithium iron phosphate batteries, they provide stable power support for mobile life.
How we make 24V 300Ah lithium battery
- Matching set of high quality LiFePO4 cells. For a 24V 300Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 300Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 300A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
