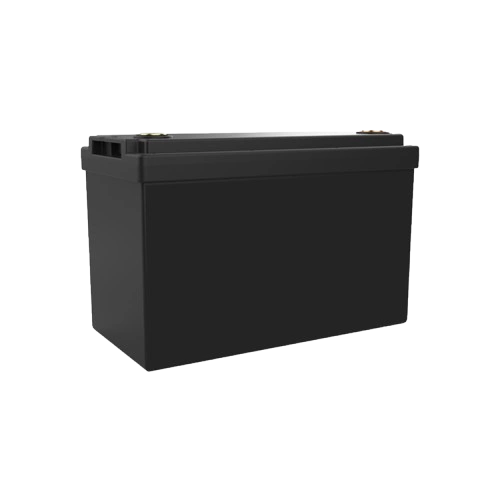

24V 60Ah Battery
Hongyitai 24V-60Ah sheet metal case lithium battery is designed for tournament fishermen or small boat owners who want to run a single 24v trolling battery but don’t have the space to store multiple batteries, or want to save some weight for better top speed and striking power.
The 25.2V 60Ah lithium battery comes with Bluetooth monitoring, you can view the battery’s status and other parameters. If the capacity is not enough, just add another 60ah battery in parallel to double the capacity.
24V 60Ah Lithium Battery Specs
-
Work Voltage Range 21.6~29.2V
-
Nominal Voltage 25.6V
-
Nominal Capacity 60Ah
-
Rated Energy 1,536Wh
-
Max Discharge Power 1,536W
-
Standard Charge Current 12A
-
Recommend Charge Current ≤30A
-
Max Charge Current 60A
-
Recommend Discharge Current ≤12A
-
Max Continue Discharge Current 60A
-
Peak Discharge Current (10S) 120A
-
Resistance ≤30mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 23Kg
-
Group 31 Case Size: 12.9 x 6.8 x 8.5 cm
Hongyitai Batery Charging Curve

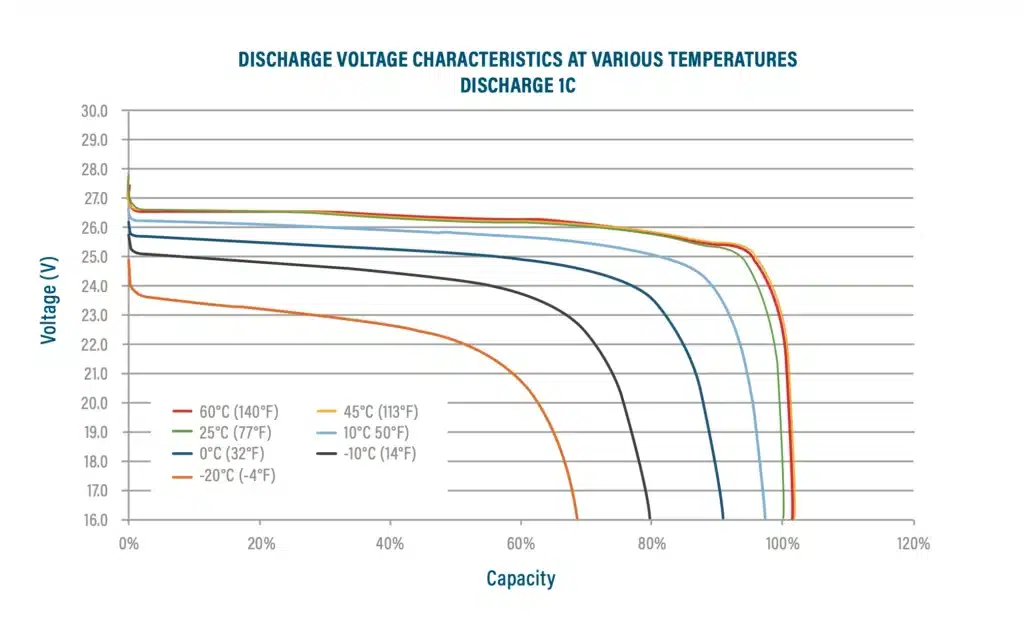

24V 60Ah Lifepo4 Battery Curve
Right images are 25.6V 60Ah LFP battery discharge voltage curve at different temperature @1C at -20℃, -10℃, 0℃, 10℃, 25℃, 45℃, 60℃.
24V 60Ah battery application
24V 60Ah lithium batteries usually include a built-in battery management system (BMS) and are made of lithium iron phosphate cells. Their main applications are as follows.
- Solar energy system: supports up to 4 solar cells for solar energy storage in off-grid and solar energy applications.
- RV power supply: Provide power for electronic equipment on the RV, such as refrigerator, TV, air conditioner, etc.
- Electric boat: for deep cycle applications in marine environments where high power is required for extended periods of time.
How we make 24V 60Ah deep cycle battery
- Matching set of high quality LiFePO4 cells. For a 24V 60Ah battery, we will need 8 cells in series, each with a nominal voltage of 3.2V and a capacity of 60Ah.
- Series the cells in series positively to each other to achieve a nominal voltage of 25.6V. Connect the batteries using nickel strips and a spot welder.
- Install a battery management system (PCM) to prevent overcharging, over-discharging and short circuit protection. Select a BMS with a nominal voltage of 25.6V and a continuous current of at least 120A.
- Solder the protection plate in the P+,P- position.
- Sheet metal enclosure to house the battery and BMS. cells and batteries need to be insulated.
- Install terminal connectors, fuses and any monitoring displays.
- Perform initial charge/discharge and testing to verify proper operation and capacity.
Get in touch
Get the 24V 60Ah battery price
- Easy installation. We can also help to install.
- Hongyitai offers freedom and flexibility by utilizing parallel connections, so you can scale your system to provide increased power and energy (up to 300Ah) as needed.
- Hongyitai can custom 25.6V 60Ah LIFEPO4 battery as per your requests.
