Custom 2S Lipo Battery Manufacturer in China
Our 7.4V 2S lipo battery is part of a 2-series polymer battery series. We offer ratings of 0.5C, 1C, 3C, 5C, 10C, 30C, 50C, 100C, and 130C, providing stable and powerful performance for remote-controlled models, drones, and portable electronic devices. The nominal voltage is 7.4V, with an operating voltage range of 6V to 8.4V.
We manufacture batteries in various capacities from 30mAh to 8000mAh, and can configure protection circuits, NTC, and equalization lines to suit your needs. Each battery comes with JST, Molex, and Hirose connectors for quick connection to your main board.
2 Cells Series
2 lipo cells are consistant at voltage, capacity and resistance.
Lightweight
Lighter in weight, making them suitable for a wide range of applications.
Flexible in Shape & Size
7.4V polymer battery can be customized to meet various capacity and size requirements.
High Discharge Rate
General discharge rates up to 5C ~ 130C.
7.4V Lithium Polymer Battery We Manufacturing
Below, please browse our typical 2S 7.4V polymer batteries. One type is the standard rate (1C ~ 5C) battery, equipped with a DAA or G3J equalization board; the other type is the 20C ~ 140C RC lipo battery, without a protection board.

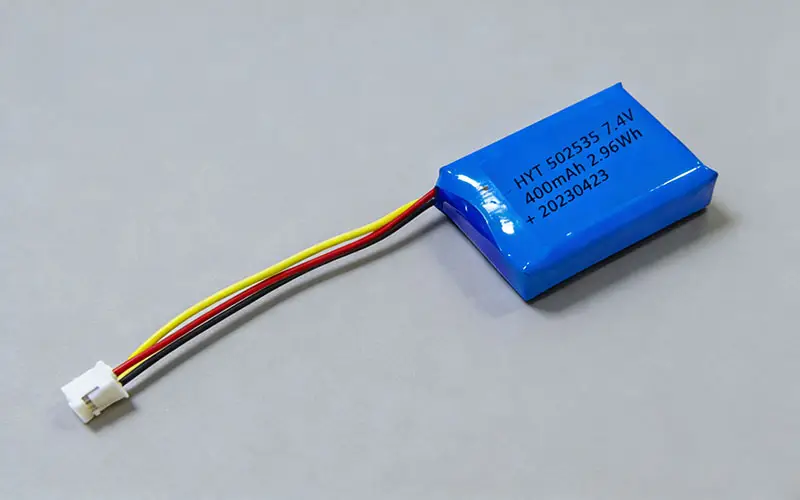

502535 7.4V 400mAh battery
Nominal voltage: 7.4V
Nominal capacity: 400mAh
Rated energy: 2.96Wh
Charge current: ≤800mA
Peak discharge current: 400mA
Resistance: ≤500mΩ
202065 7.4V 1350mAh battery
Nominal voltage: 7.4V
Nominal capacity: 1350mAh
Rated energy: 9.99Wh
Charge current: ≤1.35A
Peak discharge current: 2.7A
Resistance: ≤300mΩ
805080 7.4V 4000mAh battery
Nominal voltage: 7.4V
Nominal capacity: 4000mAh
Rated energy: 29.6Wh
Charge current: ≤4A
Peak discharge current: 4A
Resistance: ≤700mΩ
7.4V 6200mAh 100C battery
Nominal voltage: 7.4V
Nominal capacity: 6000mAh
Rated energy: 44.4Wh
Charge current: ≤6A
Peak discharge current: 600A
Resistance: ≤450mΩ
4000mAh 7.4V 15C battery
Nominal voltage: 7.4V
Nominal capacity: 4000mAh
Rated energy: 29.6Wh
Charge current: ≤4A
Peak discharge current: 60A
Resistance: ≤300mΩ
1500mAh 7.4V 20C battery
Nominal voltage: 7.4V
Nominal capacity: 1500mAh
Rated energy: 11.1Wh
Charge current: ≤1.5A
Peak discharge current: 30A
Resistance: ≤600mΩ
2S Lipo Battery Pack Features
2 lipo cell series connecting. These two cells undergo rigorous matching and pairing (voltage, capacity, and internal resistance) to provide stronger power to your system.
BMS or not. Depending on your application and instantaneous current, we offer either a precision-engineered circuit board (protecting against overcharge, over-discharge, and short circuits), or no protection board, allowing for instantaneous high-power delivery.
Safety. All our polymer cells are encased in gel and aluminum-plastic film, posing no risk of explosion or fire and ensuring the safety of your users.
Flexible in size. We can customize any dimensions and shapes to fit into various compact products, based on your battery compartment dimensions.
Hongyitai 7.4V Lipo Battery Applications
Our 7.4V 2S batteries are lightweight, high-rate, customizable, and widely used in smart cars and small robots, RC models, and outdoor equipment (temperature sensors, camera systems, exploration tools).
Capacities range from 50mAh to 6000mAh, and different sizes are available to suit your specific space requirements. Tell us your specific dimensions, charging/discharging current, operating temperature, connectors, etc., and we will provide you with the most reliable 7.4V battery solution within one day.
Internet of Things devices
7.4V lithium polymer batteries, due to their high energy density and small size, are ideal for wireless sensors, GPS trackers, smart gateways, smart locks, robot vacuums, LED lights, and Bluetooth devices, providing a stable voltage for these IoT devices.
They support 500+ cycle life, support intermittent data transmission, and reduce the complexity of power management systems.
Remote Control Vehicles
High-rate 7.4V polymer batteries are also commonly used in remote control vehicles, FPV racing cars, drones, and robotic arms. Typical capacities used are 350mAh, 2000mAh, 3500mAh, and 6000mAh.
Depending on your instantaneous power requirements, we can provide 10C, 20C, 50C, 100C, or high-rate batteries to give you super-strong power. Contact us for your RC lipo battery solution.
The Best 2S Lipo Battery Charger
A 7.4V battery requires a charging voltage of 8.4V; you need to ensure your charger outputs 8.4V. Study lithium battery voltage chart here.
If you are charging model aircraft batteries, it is best to use a charger specifically designed for model aircraft. For example, the Hardcore 2S ICX301 charger offers a maximum current of 3A, 25W PD fast charging, and supports dual-channel charging. You can also consider a USB portable charger, which is particularly suitable for RC remote controls.
If you are charging a regular 7.4V battery, simply plug it into your device’s USB or Type-C port, but do not exceed the charging current we recommend.
7.4V Lipo Battery Voltage & Size Specification
Browse Hongyitai’s standard 2S 7.4 volt polymer battery model list. We can also customize RC polymer batteries for you without PCM. Contact us for the latest specifications.
Model | Voltage (V) | Capacity (mAh) | Dimension (Thick*Width*Length) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function |
|---|---|---|---|---|---|---|
HYT402050 | 7.4 | 350 | 8*20*50 | >500 | 13 | Yes |
HYT502535 | 7.4 | 400 | 10*25*35 | >500 | 14 | Yes |
HYT702030 | 7.4 | 450 | 14*20*30 | >500 | 22 | Yes |
HYT603030 | 7.4 | 500 | 12*30*30 | >500 | 22 | Yes |
HYT602248 | 7.4 | 600 | 6*22*48 | >500 | 23 | Yes |
HYT603040 | 7.4 | 900 | 12*30*40 | >500 | 40 | Yes |
HYT523450 | 7.4 | 1000 | 10.4*34*50 | >500 | 46 | Yes |
HYT202065 | 7.4 | 1350 | 4*20*65 | >500 | 50 | Yes |
HYT103763 | 7.4 | 2800 | 20**37*65 | >500 | 76 | Yes |
HYT705568 | 7.4 | 3200 | 14*55*68 | >500 | 78 | Yes |
HYT924565 | 7.4 | 3500 | 18*45*65 | >500 | 84 | Yes |
HYT805080 | 7.4 | 4000 | 16*50*80 | >500 | 120 | Yes |
HYT804046 | 7.4 | 1500 | 16*40*46 | >500 | 55 | Yes |
KHT904060 | 7.4 | 2200 | 18*40*60 | >500 | 65 | Yes |
HYT105050 | 7.4 | 3000 | 20*50*50 | >500 | 90 | Yes |
What is 2S Lipo Battery?
2S indicates the cell series number. Each cell has a nominal voltage of 3.7V and a fully charged voltage of 4.2V. Therefore, a 2S battery has a total voltage of 7.4V, a full voltage of 8.4V, and a discharge cut-off voltage of 6V.
Capacity is measured in mAh or Ah. If the battery pack consists only of cells connected in series, the battery capacity remains unchanged.
When two cells are connected, the positive terminal of the first cell is connected to the negative terminal of the second cell, forming a head-to-tail connection, so that the total voltage is added together. Learn further series and parallel information here.
What is mostly used 2s li-polymer battery connectors?
The most commonly used connector for 2S lithium polymer batteries is the XT60, followed by the T-Plug (Deans) and JST-XH (balance charging port).
XT60: Made of gold-plated copper, it supports 60A current, prevents reverse insertion, and has a moderate size. It is the standard interface for RC models, drones, and remote-controlled cars.
T-Plug: Durable and inexpensive, it supports 15-30A and is commonly found with medium-power 2S batteries.
JST-XH: Specifically designed for 2S balance charging (monitoring battery pack voltage), with a low current (≤3A).
If you require other plug connections to your main board, please visit our top 10 lipo battery connector types.
Custom 7.4V 2S Lipo Battery Pack
2S is the smallest series-connected battery pack, but we still rigorously match the cells and weld the protection board to ensure you receive qualified batteries. Below are our simplified customization steps:
Matching: We select two cells with identical voltage, internal resistance difference <20mΩ, and capacity difference <5%.
Assembly: The negative terminal of the first cell is soldered to the positive and negative terminals of the second cell. The 7.4V protection board and balance wire are connected via nickel strips to the terminals.
Encapsulation: We generally use blue PVC insulation, measure the total voltage, and age the battery for at least 24 hours.
Contact us today for a reliable, consistent 7.4 volt li-polymer battery pack.
FAQs for 7.4 volt li-polymer battery
We manufacture 1C, 5C, 10C, 20C, 50C, 100C and 130C rated 2s 7.4V lipo batteries for you.
Our 7.4V polymer battery samples have a lead time of 3-5 days.
Our MOQ is 1K, allowing you to verify without any burden.
Yes, we can customize any dimension and accessories for your 2S battery pack with a 100C rating.
