3.7v 600mah lithium polymer battery
Polymer battery 603035 3.7V 600mAh is a lightweight and durable rechargeable power source for small electronic products. We can provide UL1642, UN38.3, IEC62133, MSDS certificates.
- UL1642
- IEC62133
- UN38.3
- MSDS
603035 3.7V 600Ah Battery Specs
-
Charging Voltage 4.2V
-
Nominal Voltage 3.7V
-
Nominal Capacity 600mAh
-
Discharge Cut-off Voltage 3V
-
Charge Current 300mA
-
Max Charge Current 600mA
-
Discharge Current 300mA
-
Max Discharge Current 1.8A
-
Operating Temperature -20~60℃
-
Dimension 6*30*37mm
-
Weight 12g
-
Lifespan 500
-
PCM Yes
-
Customization Yes
Hongyitai Polymer Battery Factory

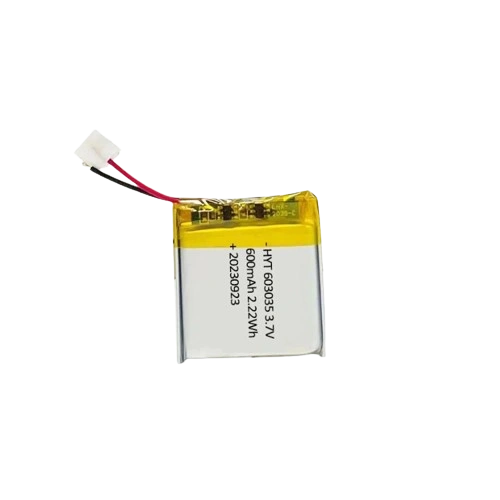

Li-polymer battery 3.7V 603035 600mAh 2.22Wh with protection circuit
We offer high-quality polymer batteries with built-in protection boards against overcharge, over-discharge and short circuit protection. Its need to be charged with constant current constant voltage, constant voltage charger. Suitable for a variety of electronic devices that require a 3.7V power supply.
The charging and discharging current can be produced according to customer’s needs, such as 1.0C and 3.0C discharge rate. Besides the model 603035, we also have many models of 600mAh batteries.
On the right is a sketch of our polymer batteries. You can clearly see the cells, protective plates, wires, terminals, insulation position, and spray code. Of course, each battery has its own unique battery information. Feel free to send us your own lithium polymer battery to customize.
China lithium polymer battery
Li-polymer battery charge & discharge curve
Polymer Battery Curve (Time — Capacity & Specific capacity)
Polymer Battery Curve (Time — Voltage & Current)
Cycle No. – Charge discharge efficiency
Cycle No. – Charging Capacity & Discharge Capacity & Charging Specific Capacity & Discharge
Lithium polymer battery component
Li-polymer battery connector models
Common wire gauge sizes for polymer batteries include.
16AWG (1.31mm²)
18AWG (0.82mm²)
20AWG (0.52mm²)
Commonly used terminal types for polymer batteries: XH-2.54mm, SH-1.0mm, PH-2.0mm, HY-2.0mm, ZH-1.5mm, VH-3.96mm, PHD-2.0mm and SZN-1.5mm.
Get Started
Get 603035 3.7V 600mAh pouch battery quote today
We will evaluate your project and get back to you within 1 working day.
