Household 36V 10.4Ah Battery
36V 10.4Ah batteries are usually lithium-ion batteries and are widely used in electric bicycles (e-bikes). These batteries have a rated voltage of 36V and a capacity of 10.4Ah, providing energy between approximately 360Wh and 385Wh. The battery pack is combined of A-grade high-power 18650 battery cells 10S4P.
- UL1642
- IEC62133
- UN38.3
- MSDS
10s4p 18650 battery pack specs
-
Charging Voltage 42V
-
Nominal Voltage 36V
-
Nominal Capacity 10.4Ah
-
Discharge Cut-off Voltage 30V
-
Charge Current 2A
-
Max Charge Current 5.2A
-
Discharge Current 5.2A
-
Max Discharge Current 10.4A
-
Operatingt Tmperature -20~60℃
-
Dimension 215*81*89mm
-
Weight 4.2kg
-
Lifespan 500
-
PCM Yes
-
Customization Yes
18650 battery pack factory

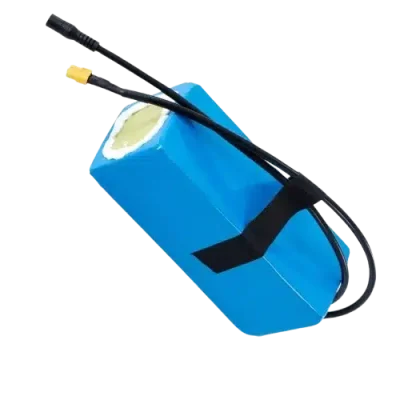

36v 10.4ah rechargeable battery
- Long-lasting power: Provides enough power for e-bikes to travel up to 100 km, and 40 km at maximum performance.
- Fast charging: Fully charged in about 3-4 hours.
- Advanced battery management system (BMS): Prevents overcharging, over-discharging and short circuits, ensuring safe operation and extending battery operating life.
- Lightweight and compact design: Easy to install and transport.
18650 battery pack factory
18650 36V 10.4Ah battery curve
Left images are 18650 lithium battery pack 36V 10.4Ah performance chart:
- Charge performance at 20℃.
- Different rate performance at 20℃.
- Different temperature characters.
- Cycle life curve.
Hongyitai battery factory

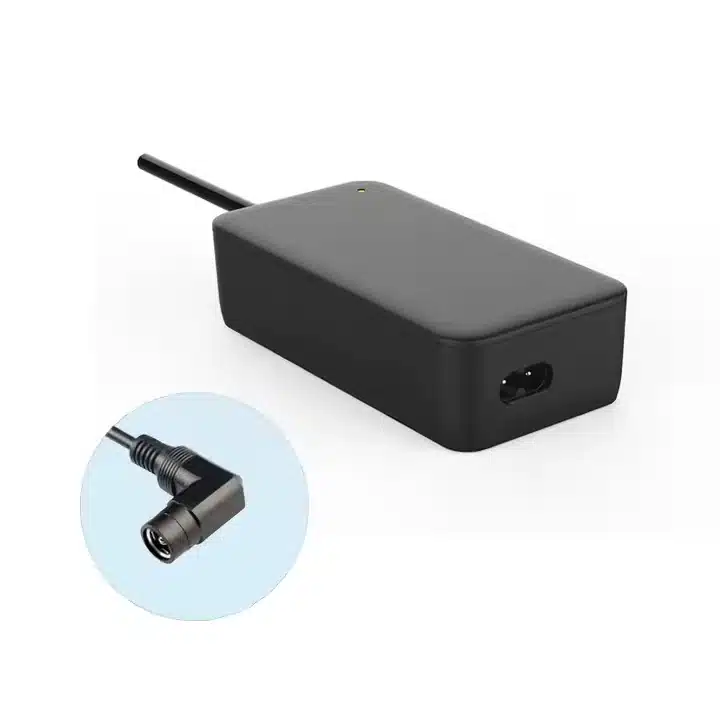

36v 10.4ah battery charger
To charge a 36V 10.4Ah battery, it is best to choose a 42V charger. Usually, the charger will use the constant current-constant voltage (CC-CV) charging mode. When charging, you must use the original factory-specific adapter charger. It is forbidden to use other models and other brands of chargers. It is strictly forbidden to charge the battery in an ambient temperature below 0℃ and above +45℃.
18650 36V 10.4Ah battery production
#1 18650 Battery Selection
Select the 40 pieces of 18650 battery cell we need. Ensure they works fine.
#2 Battery Sorting
Make sure that each battery are 2.6Ah and consistent.
#3 Arrangement & Assembly
Arrange 10S4P 36V 10.4Ah battery module.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in a PVC or metal casing while charging and discharging to activate the battery pack performance.
