36V 50Ah LiFePo4 Battery
The 36V 50Ah battery is made of lithium iron phosphate cells designed specifically for 36V devices. This battery is equipped with an integrated M10 copper screw terminal connector, which is the perfect solution for your application.
Lithium iron phosphate batteries have high energy density, a lifespan of over 6000 cycles, and a duration of 8-10 years. They are known for their safety and reliability, making them ideal for electric scooters, electric bicycles, and solar applications.
36V 50Ah Lithium Battery Specs
-
Work Voltage Range 30~43.8V
-
Nominal Voltage 38.4V
-
Nominal Capacity 50Ah
-
Rated Energy 1,920Wh
-
Max Discharge Power 1,920W
-
Standard Charge Current 10A
-
Recommend Charge Current ≤50A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤100A
-
Max Continue Discharge Current 50A
-
Peak Discharge Current (10S) 100A
-
Resistance ≤30mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 25.8Kg
-
Size (Length * Width * Thick) 520*268*228mm

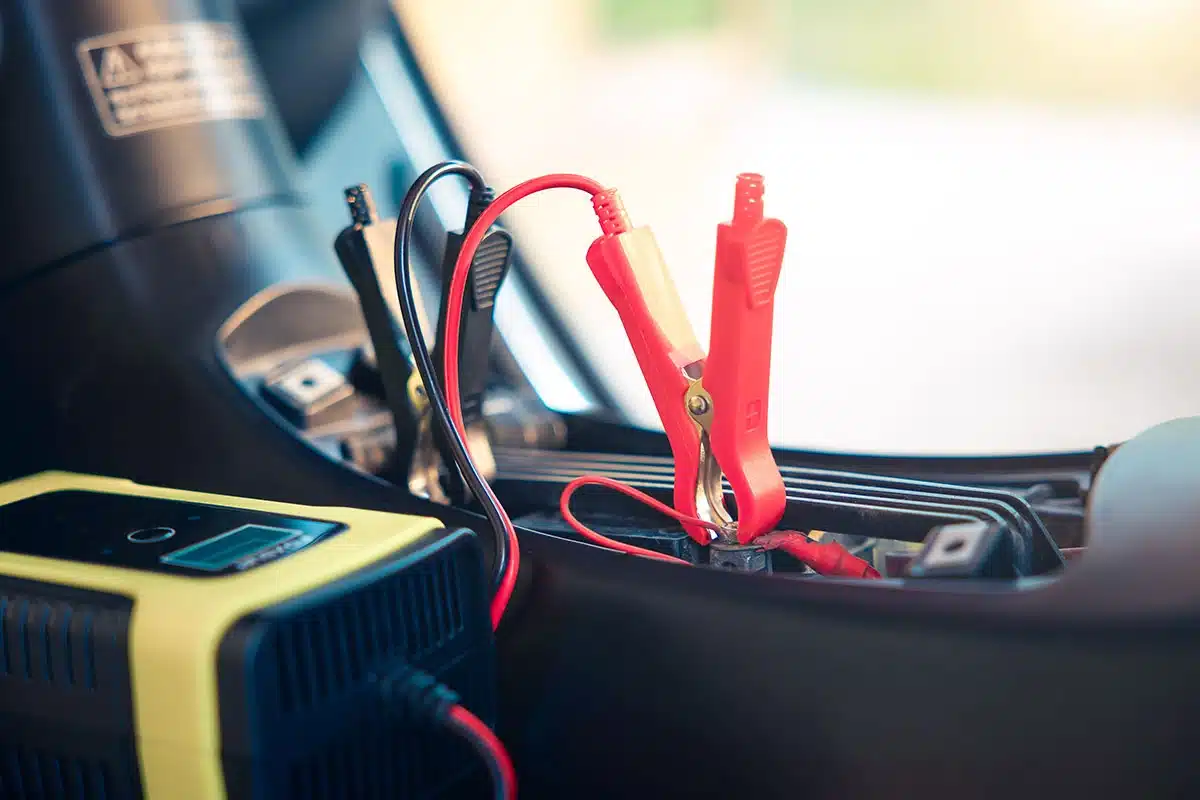

36V Lifepo4 battery charger
Voltage and Current: These chargers typically output 43.8V, suitable for 36V LiFePO4 batteries, with current ranges from 5A to 15A.
Charging Time: The charging speed depends on the charger’s current and the battery’s capacity. For example, a 15A charger can fully charge a 36V 50Ah battery in under 3.4 hours.
Safety Features: Various protection features include over-temperature protection, reverse polarity protection, short-circuit protection, and output over-voltage protection.
Cooling System: Most chargers are equipped with built-in cooling fans to enhance heat dissipation.
Connectors: Common connector types include Anderson SB50 and alligator clips.
Smart Charging Features: Many chargers offer smart functions, such as automatic shut-off when the battery is full and battery activation with BMS protection.
Input Voltage: Most chargers accept a wide input range of 100-240V AC, 50/60Hz, suitable for power standards in different countries.
Charging Heads: Be sure to choose the appropriate charging head (EU, US, or JP standards) to ensure compatibility with your usage.
Main applicates for Hongyitai 36V 50Ah lifepo4 battery
Low-speed two- and three-wheeled electric vehicles: ample range and time.
Renewable energy storage: solar and wind energy storage devices, backup power.
Marine applications: electric boats, RVs, campers, etc. to power their electronic devices.
Robotics and Automation: Industrial robots, warehouse forklifts, automated patrol cars.
Golf carts, including well-known brands such as Club Car, EZGO, ICON, and Yamaha brands.
How we make 36V 50Ah lithium battery
- Select LiFePO4 battery cells, 3.2V 50Ah battery.
- Connect 12 cells in series to achieve 38.4V using a welding machine to connect the positive and negative terminals into a group.
- Install a PCM (Protection Circuit Module) and connect it to the battery pack, ensuring it has overcharge, over-discharge, over-current, and over-temperature protection functions.
- Enclose the assembly in a case, typically using a sheet metal enclosure.
- Install output terminals, usually M8 or M10 screw terminals.
- Insulation protection: Pay attention to insulation and waterproofing, generally rated at IP65.
- Perform one charge and discharge cycle, checking voltage, capacity, internal resistance, and charge/discharge curves.
Lithium-ion battery production process
#1 Cell Selection
Select the 12 piece lifepo4 battery cell 50Ah we need. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in a ABS casing while charging and discharging to activate the battery pack performance.
Get in touch
Get the 36V 50Ah Lifepo4 battery quote today
#1 Compared to traditional SLA/AGM/GEL batteries, the energy density has doubled.
#2 60-70% lighter than traditional SLA/AGM/GEM.
#3 Optimized deep cycle performance.
#4 High temperature resistance.
