36 volt forklift battery
The 36V forklift battery is a common industrial battery, mainly used in medium-sized electric forklifts, warehouse forklifts, and pallet trucks.
The main capacities for 36V forklift batteries are 50Ah, 100Ah, 200Ah, and 400Ah. Of course, there are also some 36V lead-acid batteries in use on the market.
We are a lithium iron phosphate (LiFePO4) battery manufacturing factory, and we support custom 36V forklift batteries.

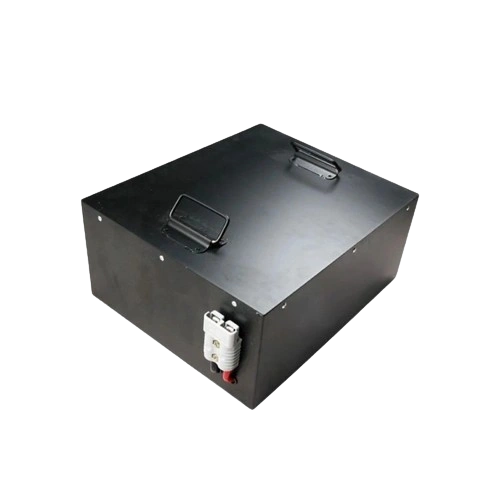

36V 200Ah Battery Specs
-
Work Voltage Range 33~43.8V
-
Nominal Voltage 38.4V
-
Nominal Capacity 200Ah
-
Rated Energy 7,680Wh
-
Max Discharge Power 7,680W
-
Standard Charge Current 40A
-
Recommend Charge Current ≤100A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤100
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 200A
-
Resistance ≤10mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 38Kg
-
Size (Length * Width * Thick) 328*172*215mm
Main applicates for Hongyitai 36V 200Ah lifepo4 battery
The 36 volt lifepo4 battery is a complete solution for replacing lead acid batteries with lithium batteries. It can be used in RVs, electric vehicles, electric boats, home energy storage, base station backup power, UPS and solar/wind energy storage systems, AGVs, forklifts.
36V 200Ah deep cycle battery factory
How to select 36v forklift battery charger
Voltage and Current Matching
- Voltage Matching: Ensure the charger’s voltage matches the battery’s voltage, which is 3.65*12=43.8V.
- Current Matching: The charger’s current output should be within 20% of the battery’s amp-hour (Ah) rating. This means if your battery is 200Ah, the charger’s output current should be between 30~50A.
Charger Type
- Smart Charger: Smart chargers use microprocessor technology to automatically adjust charging in different stages, control charging time, and automatically shut off to prevent overcharging.
- High-Efficiency Charger: High-efficiency chargers can charge faster and lose less energy during the conversion process, making them suitable for forklifts that need frequent use.
Safety and Compliance
- OSHA Requirements: Ensure the charging station complies with OSHA safety requirements, including fire protection, proper ventilation, acid handling facilities, etc.
- PPE: During charging, operators should wear appropriate personal protective equipment (PPE) such as safety goggles, rubber gloves, and safety shoes.
Get in touch
Get the 36V 200Ah forklift battery quote today
We will get back to you within 1 working day.
