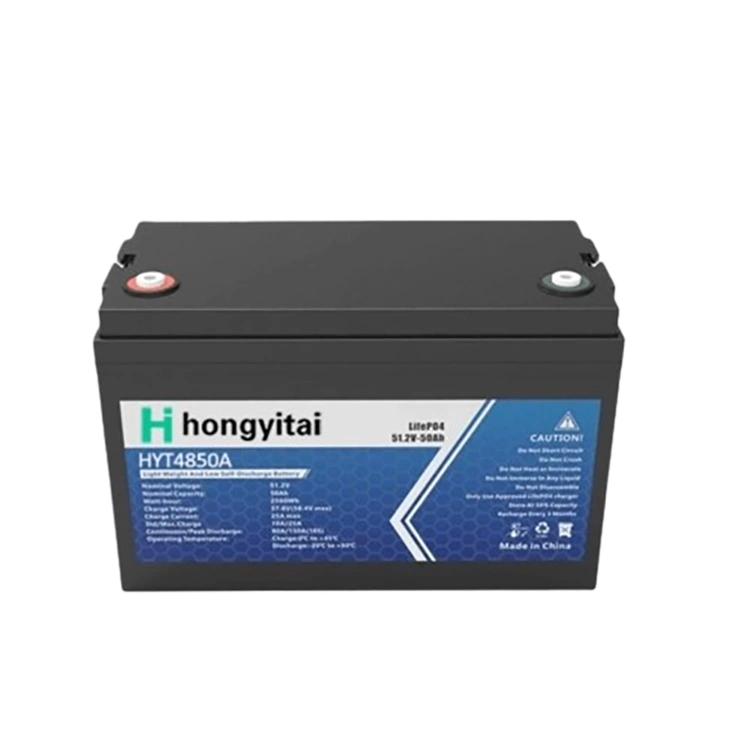

48V 50Ah LiFePo4 Battery
This is a 48v 50ah lithium ion battery with ABS standard casing, featuring self heating function, IP65 waterproof and dustproof, expandable capacity of 19.2kWh backup power supply (8P), capable of 6000 cycles, and comes with a maximum 10-year warranty.
The battery is equipped with a BMS (protective circuit module), which can provide smart protection functions such as short circuit protection, overcharge protection, and overdischarge protection. It has a complete integrated protection and charging circuit, and is free from electromagnetic interference/radio frequency interference.
48v 50ah lifepo4 battery pack specs
-
Work Voltage Range 43.2~58.4V
-
Nominal Voltage 51.2V
-
Nominal Capacity 50Ah
-
Rated Energy 2560Wh
-
Max Discharge Power 2560W
-
Standard Charge Current 10A
-
Recommend Charge Current ≤25A
-
Max Charge Current 50A
-
Recommend Discharge Current ≤50A
-
Max Continue Discharge Current 50A
-
Peak Discharge Current (10S) 100A
-
Resistance ≤30mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 22Kg
-
Size (Length * Width * Thick) 522*240*218mm
48V lithium battery charger
48V LiFePO4 battery chargers are specifically designed to efficiently and safely charge 48V lithium iron phosphate battery packs. Key features of these chargers include.
Charging Specifications
- Charging Voltage: 58.4V
- Charging Current: Typically 8-20A, 10-30% of battery capacity
- Charging Algorithm: Constant Current Constant Voltage (CC-CV) to Constant Voltage Charging
Safety features
- Over-charge, over-discharge, over-current and short-circuit protection
- Heat management with cooling fan to prevent overheating
- Automatic shutdown when battery is fully charged
Compatibility
- Specifically designed for 48V LiFePO4 battery packs
- Supports batteries with and without built-in battery management system (BMS)
Accessory: 2 Alligator Clips for charging
Main applicates for Hongyitai 48V 50Ah lifepo4 battery
Solar Energy Storage System: The 48V 50Ah battery pack can be used as an energy storage device for off-grid solar system to store solar energy.
Electric Golf Cart: Provide power for electric golf carts, with the advantages of long range, light weight and long cycle life.
Electric Forklift: Powering electric forklifts to meet the needs of high power and long working hours, it is an ideal replacement for lead-acid batteries.
Mobile robots and AGVs: Power supply for mobile robots and AGVs to meet the needs of high power and high safety, and provide communication interfaces to interface with the robot control system.
To power your tool shed, connect it to solar energy to obtain an independent power source, collect sunlight and convert it into direct current for home and tool use.
How we make 48V 50Ah lithium battery
- Select A-class quality LiFePO4 battery cells, 3.2V 50Ah battery.
- Connect 16 cells in series to achieve 58.4V using a welding machine to connect the positive and negative terminals into a battery pack module.
- Install a PCM (Protection Circuit Module) and connect it to the battery pack, ensuring it has overcharge, over-discharge, over-current, and over-temperature protection functions.
- Enclose the assembly in a case, typically using a sheet metal enclosure.
- Install output terminals, usually M10 screw terminals.
- Insulation protection: Pay attention to insulation and waterproofing, generally rated at IP65.
- Perform one charge and discharge cycle, checking voltage, capacity, internal resistance, and charge/discharge curves.
Lithium-ion battery production process
#1 Cell Selection
Select the number of lithium iron phosphate battery we need. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in a ABS or metal casing while charging and discharging to activate the battery pack performance.
