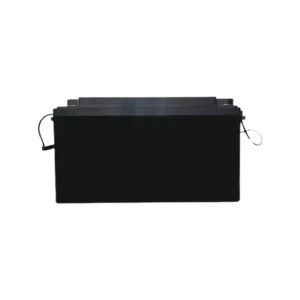

48V 60Ah LiFePo4 Battery
48V 60Ah LiFePO4 battery is a high-capacity lithium iron phosphate battery commonly used for powering golf carts, LSVs, ATVs, NEVs, E-bikes, electric shuttle buses, electric tricycles (≤ 21ML/35KM/h), shipyards, and home storage rooms.
We can provide you with UL1642, UL62133, UN38.3, and MSDS certificates for 48v 60ah lithium batteries.
48V 60Ah Lithium Battery Specs
-
Work Voltage Range 43.2~58.4V
-
Nominal Voltage 51.2V
-
Nominal Capacity 60Ah
-
Rated Energy 3,072Wh
-
Max Discharge Power 3,072W
-
Standard Charge Current 12A
-
Recommend Charge Current ≤30A
-
Max Charge Current 60A
-
Recommend Discharge Current ≤60A
-
Max Continue Discharge Current 60A
-
Peak Discharge Current (10S) 120A
-
Resistance ≤25mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 28Kg
-
Size (Length * Width * Thick) 522*240*218mm
48v 60ah lithium battery factory

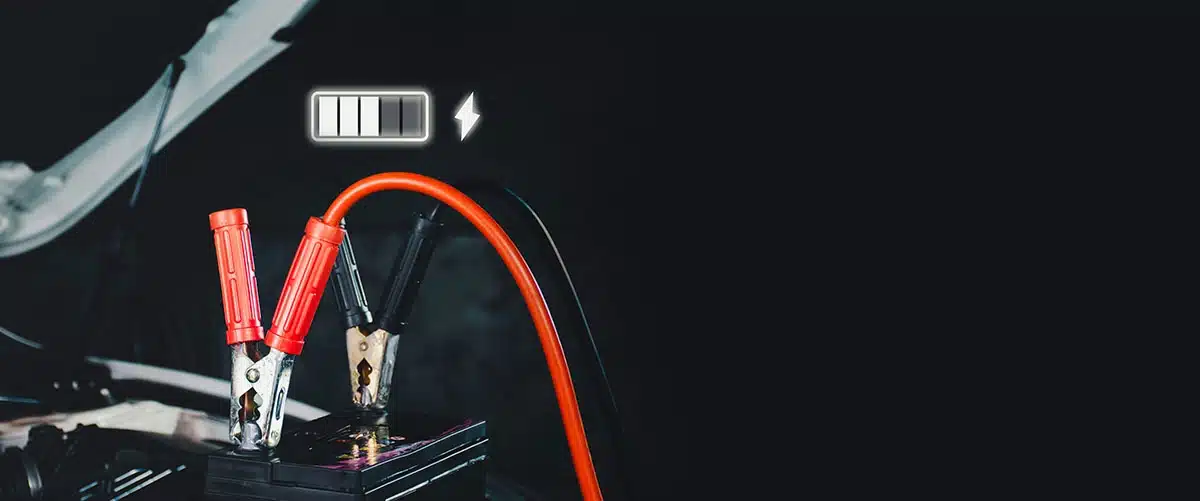

lifepo4 48v battery charger
48V LiFePO4 battery chargers are specifically designed to efficiently and safely charge 48V lithium iron phosphate battery packs. Key features of these chargers include.
Charging Specifications
- Charging Voltage: 58.4V
- Charging Current: Typically 8-20A, 10-30% of battery capacity
- Charging Algorithm: Constant Current Constant Voltage (CC-CV) to Constant Voltage Charging
Safety features
- Over-charge, over-discharge, over-current and short-circuit protection
- Heat management with cooling fan to prevent overheating
- Automatic shutdown when battery is fully charged
Compatibility
- Specifically designed for 48V LiFePO4 battery packs
- Supports batteries with and without built-in battery management system (BMS)
Convenience
- Alligator clip connection for easy installation
- LED indicator shows charging status
Main applicates for Hongyitai 48V 60Ah battery pack
Golf carts: these batteries are specifically designed for golf carts.
Electric vehicles: low speed vehicles, 2-wheeled vehicle and 3-wheeled vehicle.
Robotics and automated guided vehicles (AGVs). They are mainly working for modern factory.
Renewable energy storage: solar & wind energy storage. They will store and provide electricity at night.
Marine and RV applications: they are providing powers for boats and yachts.
Backup power systems: UPS and home energy storage for emergency.
Industrial and commercial applications: warehouse forklift and material handling equipments. And backup power to data centers.
How we make 48V 60Ah lithium battery
- Select LiFePO4 battery cells, 3.2V 60Ah battery.
- Connect 16 cells in series to achieve 58.4V using a welding machine to connect the positive and negative terminals into a group.
- Install a PCM (Protection Circuit Module) and connect it to the battery pack, ensuring it has overcharge, over-discharge, over-current, and over-temperature protection functions.
- Enclose the assembly in a case, typically using a sheet metal enclosure.
- Install output terminals, usually M10 screw terminals.
- Insulation protection: Pay attention to insulation and waterproofing, generally rated at IP65.
- Perform one charge and discharge cycle, checking voltage, capacity, internal resistance, and charge/discharge curves.
Lithium-ion battery production process
#1 Cell Selection
Select the 16 piece of 3,2V 60Ah lfp cells we need. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in metal casing while charging and discharging to activate the battery pack performance.
Get in touch
Get the 48V 60Ah Lifepo4 battery quote today
#1 The 120A BMS can prevent overcharging, overdischarging, overcurrent, overheating, and short circuit protection
#2 100% comprehensive coverage of all fault risks.
#3 Lithium batteries remain stable as usual, allowing your device to travel smoothly and safely.
