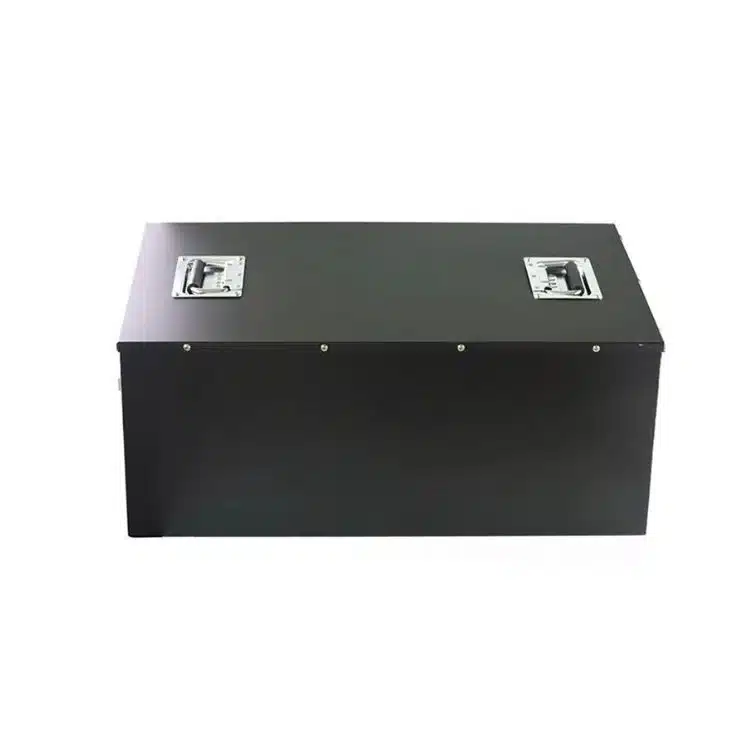

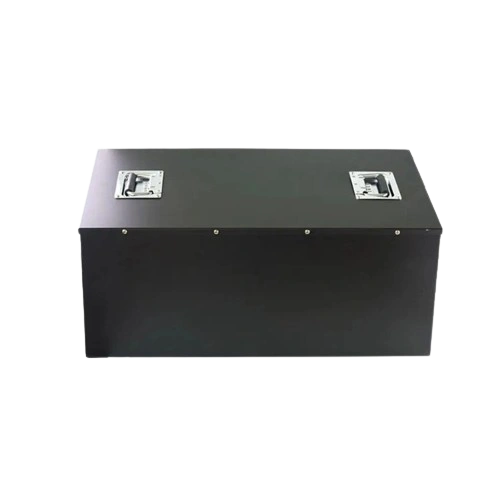

48 volt forklift battery
A forklift battery is a crucial component of electric forklifts, providing the power needed to operate these machines. Among various voltage options, the 48V forklift battery is commonly used in large electric equipment.
There are two types of 48V batteries: lead-acid batteries and lithium-ion batteries. The latter offers over 30% more capacity than the former in the same volume, thus providing longer operating times.
The main capacities for 48V lithium batteries are 100Ah and 200Ah. We can also customize other capacities of 48V forklift batteries.
48V 200Ah Battery Specs
-
Work Voltage Range 41.25~54.75V
-
Nominal Voltage 48V
-
Nominal Capacity 200Ah
-
Rated Energy 9,600Wh
-
Max Discharge Power 9,600W
-
Standard Charge Current 50A
-
Recommend Charge Current ≤100A
-
Max Charge Current 100A
-
Recommend Discharge Current ≤50
-
Max Continue Discharge Current 100A
-
Peak Discharge Current (10S) 200A
-
Resistance ≤10mΩ
-
Lifespan (25℃,0.5C,80%DOD) >6000
-
Waterproof IP65
-
Weight 52Kg
-
Size (Length * Width * Thick) 328*172*215mm
Main applicates for Hongyitai 48V 200Ah lifepo4 battery
The 48 volt lifepo4 battery is a complete solution for replacing lead acid batteries with lithium batteries. It can be used in industrial equipment, like AGV, forklift, home energy storage, outdoor and portable equipment, such as RVs, trailers, boats, and golf carts, as well as large equipment like communication base stations.
48V 200Ah deep cycle battery factory
How to select 48v forklift battery charger
Key Factors to Consider When Choosing a 48V Forklift Battery Charger
Voltage Compatibility Ensure the charger’s voltage matches the forklift battery’s voltage. For a 48V forklift, you need a charger with an output of 54V.
Output Current (Amperage) The charger’s output current should be determined based on the battery’s amp-hour (Ah) rating. Here is a basic guide for choosing the appropriate output:
- Standard Charging: About 20% of the battery capacity. For a 48V 200Ah battery, the recommended charging current is around 40A.
- Fast Charging: Up to 40% of the battery’s Ah rating. For a 48V 200Ah battery, the fast charging current is around 80A.
Charger Efficiency Consider whether you want to use a standard charger or a high-efficiency charger:
- Standard Charger: Focuses on providing the necessary voltage and current without prioritizing energy efficiency.
- High-Efficiency Charger: Designed to reduce energy waste and lower operating costs, usually equipped with advanced multi-stage charging algorithms.
Features and Technology Many modern 48V chargers come with smart chips that monitor battery health and charging status, providing optimal charging solutions, overcharge, over-discharge, short circuit, and over-temperature protection mechanisms.
By considering these factors, you can choose a 48V forklift battery charger that meets your operational needs, thereby optimizing the performance and lifespan of your forklift battery.
