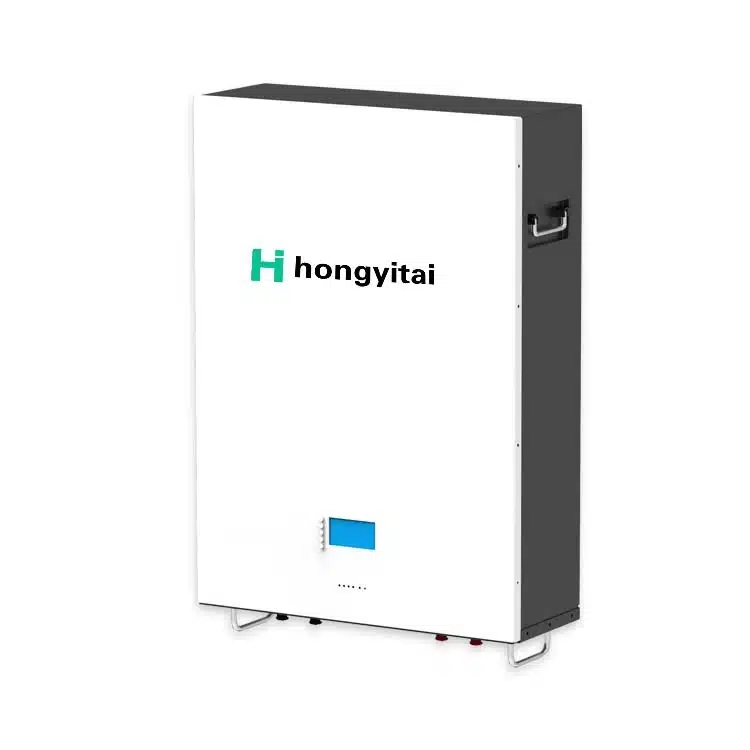

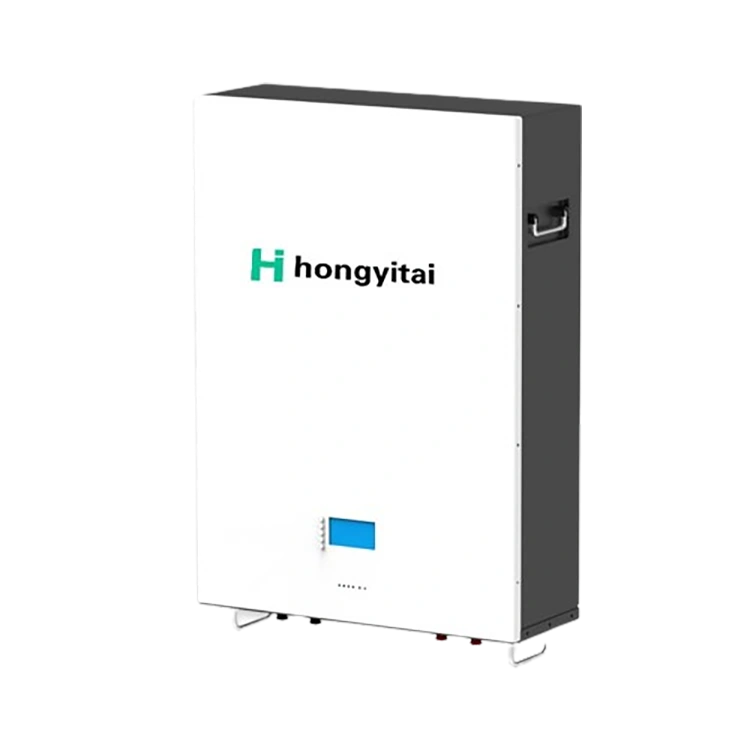

5Kwh Home Wall Mount Battery
The 5kWh home energy storage system is a compact solution designed for household use. It primarily consists of lithium iron phosphate (LiFePO4) batteries, an inverter, and a control system.
- Wall-Mounted Design: Saves space and is suitable for installation on both indoor and outdoor walls.
- Modular Design: High integration, supporting up to 16 parallel connections, reaching up to 160kWh.
- High Protection Level: Rated up to IP65, suitable for both indoor and outdoor use.
- Exclusive Appearance Design: Easy to install and maintain.
- UL1642
- IEC62133
- UN38.3
- MSDS
5Kwh home battery backup specs
-
Charging Voltage 58.4V(3.65v)
-
Nominal Voltage 51.2V
-
Nominal Capacity 100Ah(5.12KWh)
-
Discharge Cut-off Voltage 43.2V(2.7v)
-
Charge Current 20A
-
Max Charge Current 100A
-
Discharge Current 20A
-
Max Discharge Current 100A
-
Operatingt Tmperature -20~55℃
-
Dimension 48.5*173.5*115mm
-
Weight 52Kg
-
Lifespan 6000
-
Communication protocol RS485/CAN
-
LCD Yes
-
Customization Yes
5Kwh home battery communication port
-
CAN2-H/inside High
-
CAN2-L/inside High
-
CAN1-H PCS CAN-H
-
CAN1-L PCS CAN-L
-
RS485_B PCS RS485 B
-
RS485_A PCS RS485 A
-
EXIT_12V+ activate the positive electrode
5kWh wall-mounted energy storage system inverter
-
Input Parameters
-
Maximum input voltage 600V
-
MPPT voltage range 90V - 560V
-
Maximum input current per MPPT 12.5A
-
Number of MPPTs 2
-
Output Parameters
-
Rated output power 3000W - 6000W
-
Output frequency 50Hz/60Hz
-
Maximum output current 15A - 27.3A
-
Maximum efficiency 98.3% - 98.4%
Solar batteries for home
5Kwh backup battery for home peroformance curve
5Kwh 48V 100Ah lifepo4 battery home energy storage system charge & discharge performance curves as below:
- Discharge curves at different temperatures: 10℃, 20℃, 25℃, 60℃.
- Cylce life VS. DOD temperature at 0.2C rate
- 0.2C CC-CV charge charateristics
- Self-discharge characteristics
Solar battery for home
5Kwh home battery storage application
Solar/Wind Energy Storage System:
Stores excess solar energy during the day for use at night, enabling effective utilization of clean energy, reducing grid pressure, and eliminating the need for backup power.Home Backup Power:
When a power outage occurs, the 5kWh wall-mounted home energy storage system instantly becomes a reliable backup power source, providing continuous power to your home and ensuring your daily life is unaffected.Small Business Energy Storage System:
Provides stable and reliable power supply for small shops, restaurants, etc., ensuring your business operates smoothly and avoiding losses due to power outages.Residential Energy Storage System:
Takes advantage of peak and off-peak electricity pricing by storing energy during low-price periods and using it during peak times, effectively reducing electricity costs and allowing you to sell excess power to the grid.
Lithium-ion battery production process
#1 Cell Selection
Select the number of 18650 cells or LiFePO4 cells we need. Ensure they works fine.
#2 Battery Sorting
Make sure that the capacity, voltage, and internal resistance of the selected cells are consistent.
#3 Arrangement & Assembly
Combine the required battery modules in a series-parallel manner.
#4 Spot Welding
The positive and negative terminals of the battery are connected via nickel tabs to form the desired capacity or voltage.
#5 Mounting Protection Board
Connect the protection board on the battery pack to ensure that its overcharge, overdischarge and short circuit protection functions properly.
#6 Packaging & Aging
Wrap the battery pack in a PVC or metal casing while charging and discharging to activate the battery pack performance.
Get Started
Get 5kwh home backup battery quote today
We will evaluate your project and get back to you within 1 working day. You will also receive below components:
- (Connection Line 1-2/1 PCS) 1500mm * 2
- (Connection Line 3-4/1 PCS) 1000 mm * 2
Explosive screw: 12PCS
RJ45 Network cable
FAQs for 5kwh wall mount battery
Yes, the 5kWh battery can be mounted easily on the wall.
Yes, our 5kWh wall-mounted batteries are designed to be compatible with solar inverters. We can also provide 5kwh wall mount battery energy system.
It is designed for a lifespan of over 10 years, with a cycle life of ≥6000 cycles. Kindly contact us for further details.
Hongyitai has been producing lithium battery over 10 years. All our home energy storage battery comes with 3 -~5 years warranty, as well as relative certificates, such as CE, IEC62133, UN38.3, MSDS.
We don’t have MOQ limits. We can support you small quantity. Our production ability is over 3 containers per month.
