The core of fast charging technology is to significantly shorten the charging time by increasing the power delivered to the battery. This is not simply increasing the current. Modern fast charging is very smart. The charger and the device will communicate through standard protocols such as USB PD to dynamically adjust to the optimal charging voltage and current. This can achieve fast charging while ensuring the safety of the entire process and protecting the health of the battery.
What is slow charging
Slow charging is a charging method that focuses more on protecting the long-term health of the battery. It minimizes the heat and physical stress on the battery during the charging process by using a smaller charging current. This will reduce the charging speed, but it is a very safe choice for those who want to extend the battery life of their device.
Is fast charging bad for battery
The core advantage of fast charging lies in its high charging efficiency, which greatly shortens the charging time by increasing the charging current (or increasing the charging voltage), which brings convenience to devices such as smartphones and electric vehicles. However, this “acceleration” process does bring some additional burden to the battery, which may have potential negative effects.
Higher charging temperature
This is one of the most significant hazards of quick charge. According to Joule’s law (P = I²R), higher charging current will inevitably generate more heat on the battery resistor. High temperature is the main cause of lithium battery aging. It will accelerate the decomposition of the electrolyte, promote the thickening of the SEI film (solid electrolyte interface film) on the surface of the negative electrode, and may even destroy the structure of the positive and negative active materials, all of which will lead to battery capacity decay and shortened life.
Lithium precipitation risk
During high speed charging, a large number of lithium ions need to migrate from the positive electrode and embed into the negative electrode graphite in a short time. This rapid movement will exert great mechanical stress on the physical structure of the electrode material, because the material will change in volume as lithium ions are embedded/extracted. Long-term, rapid volume expansion and contraction may cause the active material particles to break or peel off from the current collector.

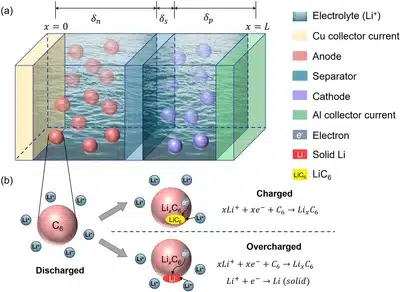

At low temperatures or when the battery is nearly fully charged, lithium ions may not have enough time to be evenly embedded, but instead directly deposit on the surface of the negative electrode to form metallic lithium, which is called lithium plating. This will not only permanently lose recyclable lithium and reduce battery capacity, but once lithium dendrites grow to a certain extent, they may pierce the diaphragm and cause an internal short circuit in the battery, posing a safety hazard. Read more.
Increase internal resistance
The high temperature and potential side reactions (such as lithium precipitation and electrolyte decomposition) during the fast charging process tend to accelerate the growth and aging of the SEI film. Although a stable and thin SEI film is necessary, too fast or too thick growth will consume active lithium, thereby significantly increasing the internal resistance of the battery. This will cause the battery to generate more heat and reduce its ability to output power, further deteriorating battery performance and life.
What are the benefits of slow charging for lithium batteries
Slow charging, which uses a relatively small charging current (usually less than 0.5C or 0.2C) to charge lithium batteries, is far less time-efficient than fast charging, but it has many significant benefits in maintaining the long-term health of the battery and extending its service life. These advantages are mainly due to its gentle charging process:
Lower charging temperature
This is one of the core advantages of slow charging. Due to the small charging current, according to P=I²R, the heat (Joule heat) generated during the charging process will be significantly reduced. The battery temperature can be kept close to the ambient temperature, effectively avoiding the accelerated aging of the internal battery materials and chemical reactions caused by high temperature. High temperature will accelerate the decomposition of the electrolyte, the abnormal growth of the SEI film, and the destruction of the positive and negative electrode material structures, while slow charging greatly slows down these degradation processes.
Reduce the pressure on the electrode
When lithium ions are embedded in and out of electrode materials during the charge and discharge process, it causes a slight change in the volume of the material. During slow charging, the migration and embedding of ions is smoother and more orderly. This makes the electrode material bear less mechanical stress, which can reduce the risk of cracking of active material particles and peeling of current collectors, and help maintain the long-term stability of the electrode structure.

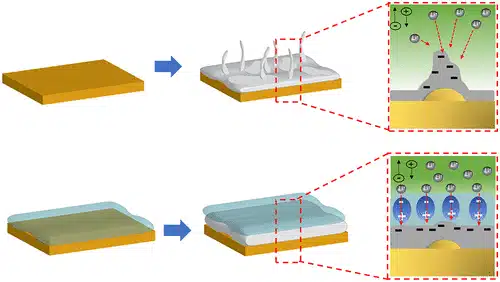

Uniform lithium ion insertion
Under low current, lithium ions have ample time to diffuse in the electrolyte and be evenly embedded in the negative electrode. This greatly reduces the risk of lithium precipitation. The slow charging process can minimize this unevenness and the potential risk of lithium precipitation.
By controlling temperature rise, reducing internal stress, and promoting uniform distribution of ions, slow charging can effectively slow down the rate of battery capacity decay, making it more likely that the battery will reach its designed cycle life. Although its disadvantage is that it is time-consuming, for those who do not pursue extreme charging speeds and value long-term durability and maximum battery life, such as nighttime charging and energy storage system maintenance charging, slow charging is still a very valuable charging method.
Key factors affecting charging effect
Charging speed is an intuitive feeling, but the charging effect of lithium batteries and the long-term impact on battery life are determined by multiple factors, far more than just “fast” or “slow”. To fully understand the charging process, you need to consider the following key aspects:
Battery chemistry and design goals
Different material systems determine the basic characteristics of batteries. For example, the lithium iron phosphate (LFP) system is known for its excellent thermal stability and long cycle life, and has better tolerance to fast charging, making it the preferred choice for applications that focus on safety and durability. The ternary lithium (NMC/NCA) system has a higher energy density and can provide longer battery life or larger capacity, but has stricter requirements for temperature and voltage management during fast charging.
If high-rate charge and discharge are required, the battery design will focus on power performance, which is achieved by using special electrode materials, thinner electrode structures, and optimized electrolyte formulations. On the contrary, if the battery life is prioritized, the design will focus on maximizing energy density, that is, storing as much power as possible in a limited volume. Such batteries may have relatively low adaptability to high-rate fast charging.

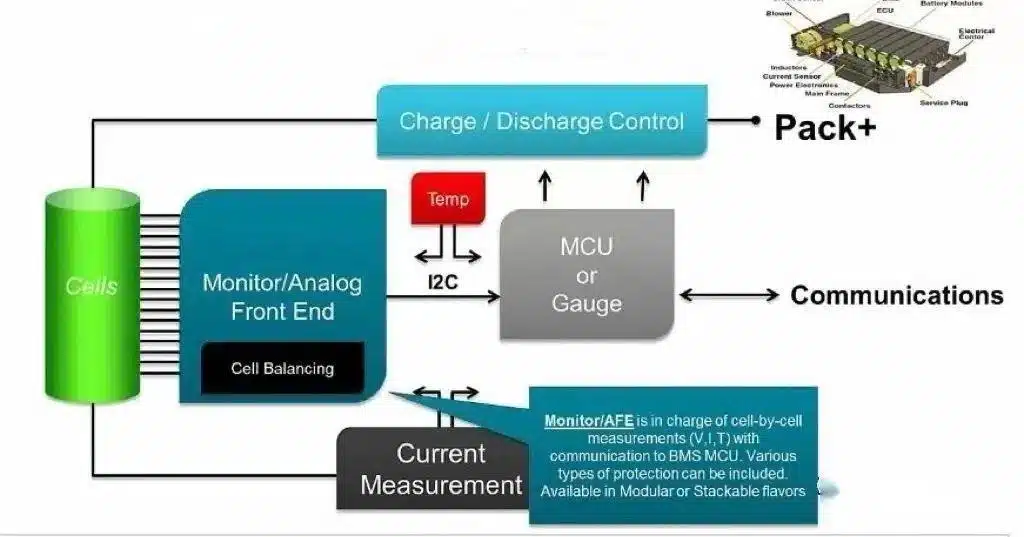

The role of a battery management system (BMS)
It is an indispensable core component in modern battery technology, playing the role of the “brain” and “guardian” of the battery pack. The main responsibility of BMS is to monitor the key parameters of the battery in real time and accurately, including single cell voltage, total current and temperature distribution. Based on these data and built-in advanced algorithms, BMS can implement dynamic and intelligent management of the charging and discharging process.
In the fast charging scenario, the BMS will dynamically adjust the charging strategy according to the current state of the battery (such as power, temperature, and internal resistance changes), allowing higher power input under appropriate conditions to improve efficiency, and actively reduce the charging rate when it detects that the temperature is close to the threshold, the voltage is close to the upper limit, or any potential risks occur. It can maximize the balance between charging speed and battery safety, effectively alleviate the negative effects that may be caused by fast charging, and ensure that the battery system operates efficiently, reliably, and sustainably.
Ambient temperature
Ambient temperature has a direct impact on the charging performance and life of lithium batteries. Charging at too high a temperature, especially fast charging, will accelerate the chemical side reactions inside the battery, causing it to age faster and significantly shorten the overall service life of the battery; conversely, charging at too low a temperature (e.g. below 5°C or even below freezing) will greatly reduce the activity of lithium ions embedded in the negative electrode. At this time, forced fast charging can easily cause lithium ions to deposit and precipitate on the surface of the negative electrode, which will not only cause permanent loss of battery capacity, but may also bring safety risks in serious cases.
Therefore, our battery management system (BMS) closely monitors the temperature and intelligently adjusts the charging strategy under extreme temperature conditions, such as limiting the charging current or suspending charging, to ensure the safety of the charging process and maximize the protection of battery health and extend its effective service life.
Charger quality and protocol
It is critical to use a quality charger that meets the specifications. Poor quality chargers may have problems such as unstable output voltage/current, excessive ripple, poor temperature control, etc., which directly damage the battery. At the same time, modern fast charging relies on communication protocols between the charger and the device (such as USB Power Delivery (PD), Qualcomm Quick Charge (QC), etc.). These protocols ensure that both parties can determine the most appropriate charging power and strategy. Learn more.
Battery aging
As the battery is used and ages, its internal impedance increases and its capacity decays. An aged battery will have a lower ability to accept high current charging, may generate more heat during fast charging, and have a higher risk of lithium precipitation. Smart BMSs usually take the battery’s SoH into account and adjust the charging strategy accordingly, and may automatically reduce the maximum charging power for aging batteries.
Should I choose fast charging or slow charging?
It’s essentially a trade-off between the convenience of charging speed and the long-term health of the battery.
The core advantage of fast charging is that it significantly shortens the waiting time, which is very suitable for use when time is tight and the device power needs to be restored quickly. It greatly improves the efficiency and flexibility of use. However, high-power charging does produce greater electrochemical and thermodynamic stress inside the battery. Although modern battery design and intelligent BMS can dynamically adjust strategies to significantly reduce the negative impact, long-term and frequent use of fast charging under non-ideal conditions (such as high temperature environment) may still accelerate the attenuation of battery capacity and aging of performance.
Relatively speaking, the slow charging process is more “gentle”. The charging current is smaller, the heat generated is lower, and the disturbance to the battery is small. Therefore, it is generally considered a better choice for extending battery life, such as charging mobile phones and electric vehicles at night, or when there is no rush to use the device. Slow charging can better care for the battery and help maintain its long-term health.
Therefore, choosing fast charging or slow charging is not black and white. The key is to understand the characteristics and impacts of both, and make a wise and dynamic choice based on your own actual needs, usage scenarios, and expectations for device life. Modern technology, especially advanced BMS, is designed to help users enjoy the convenience of fast charging while minimizing its potential loss of battery life.
Conclusion
Fast charging can quickly charge the battery in a short time, which is suitable for emergency situations, but long-term use or use at high temperatures will accelerate battery aging; slow charging is more gentle, which is conducive to extending battery life and is suitable for times when power is not urgently needed, such as at night. Modern batteries and intelligent BMS systems can better manage the risks of fast charging, but best practices still recommend: use fast charging on demand, as much as possible at a suitable temperature, consider maintaining the power in the range of 20%-80%, and give priority to slow charging when there is no emergency, so as to wisely balance the charging speed and the long-term health of the battery according to actual needs and conditions.
FAQs
Phone batteries degrade; users want to know the best charging practice. Explain the trade-off and recommend a balanced approach.
Slow charging is generally better for long-term battery health, but occasional fast charging is fine. Avoid keeping your phone at 100% for extended periods.
EV owners want to know the best way to charge their vehicles. Explain the impact of charging speed on EV batteries.
For everyday charging, slow charging (Level 1 or Level 2) is better for preserving battery life. Fast charging (DC fast charging) is useful for long trips, but frequent use can accelerate degradation.
EV owners want to know if overnight slow charging is a good practice. Confirm that this is a beneficial practice.
Yes, slow charging your EV overnight is an excellent practice. It's gentle on the battery and ensures you have a full charge in the morning.
