China Custom Deep Cycle LiFePo4 Battery Manufacturer
Stop to replace lead acid batteries every 2 years. Upgrade to Hongyitai grand new LFP deep cycle batteries — 3× energy density, 6000+ cycles, zero maintenance. They are powering RVs, solar systems & marine applications. OEM/ODM supports available.
Class-A Battery Cell
Factory new 3.2V 26650 or 32650 lifepo4 cell. 6000+ cycles, 10-year lifespan
Custom Battery Pack
12V, 24V, 36V, 48V, 60V, 72V lithium ion phosphate battery packs design
Global Supply
Wholesale & distributor service provided
Certified Quality
UL/CE/UN38.3/ISO9001 compliant
High Quality Lithium Iron Phosphate Battery Styles We Manufacture
Our prismatic aluminum-cased batteries feature a robust, thermally stable package for maximum energy density. They utilize laser-welded tabs and multi-layered safety vents.
Another commonly used cylindrical cell type is the 21700, 26650, and 32700. These combine the reliability of cylindrical batteries with the high safety of lithium iron phosphate.
Therefore, they can withstand extreme vibration, shock, and temperature cycling, making them an excellent choice for mobile and industrial applications.
12V LiFePo4 Battery
Composed of four 3.2V lithium iron phosphate cells connected in series. A plug-and-play, deep-cycle lithium iron phosphate solution from 12Ah to 400Ah. We build with EVE, CATL, REPT prismatic cells — never Grade B or recycled.
They are precisely matched to BCI Group 24/27/31 sizes, with SAE+M8 dual terminals. Lead-acid batteries can be easily replaced in 10 minutes, with a 60% weight reduction.

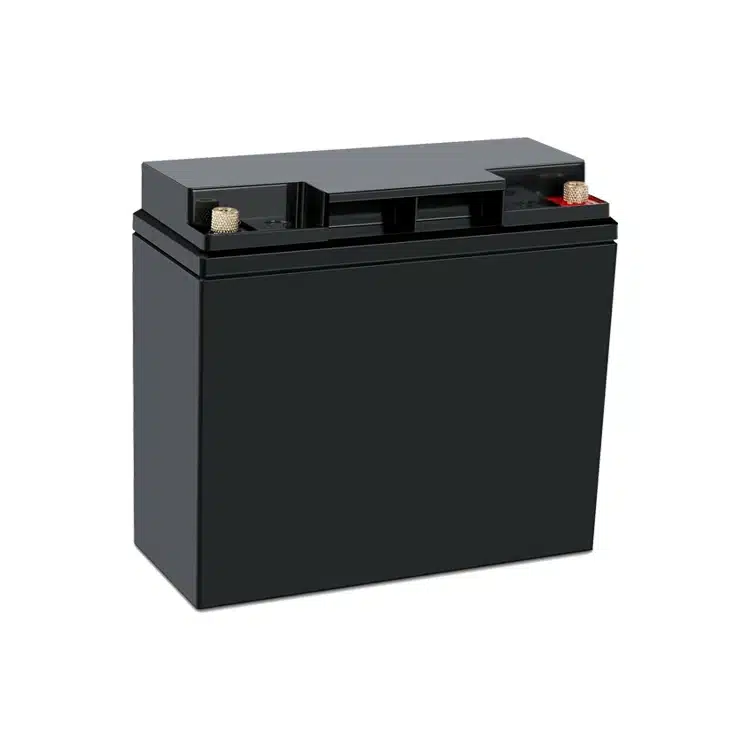

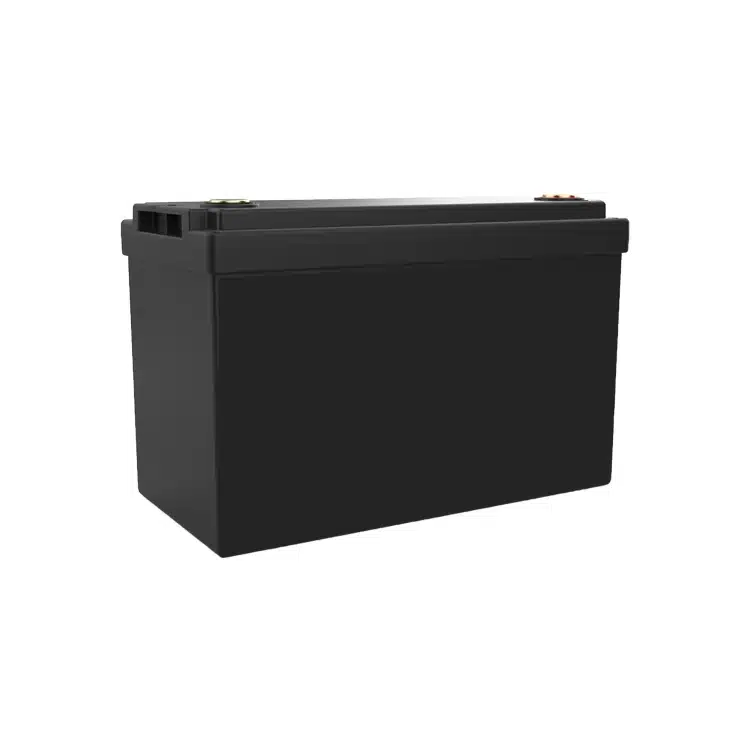

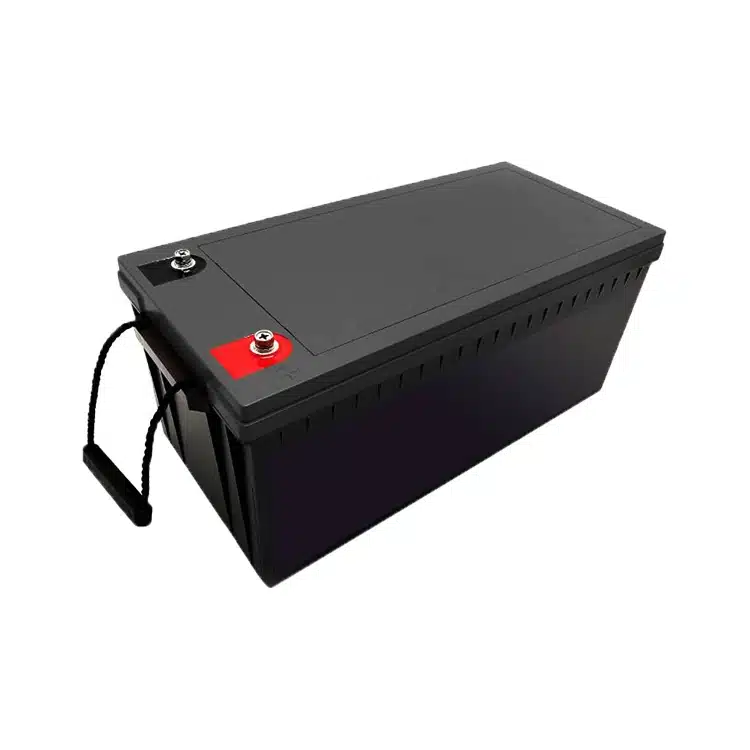

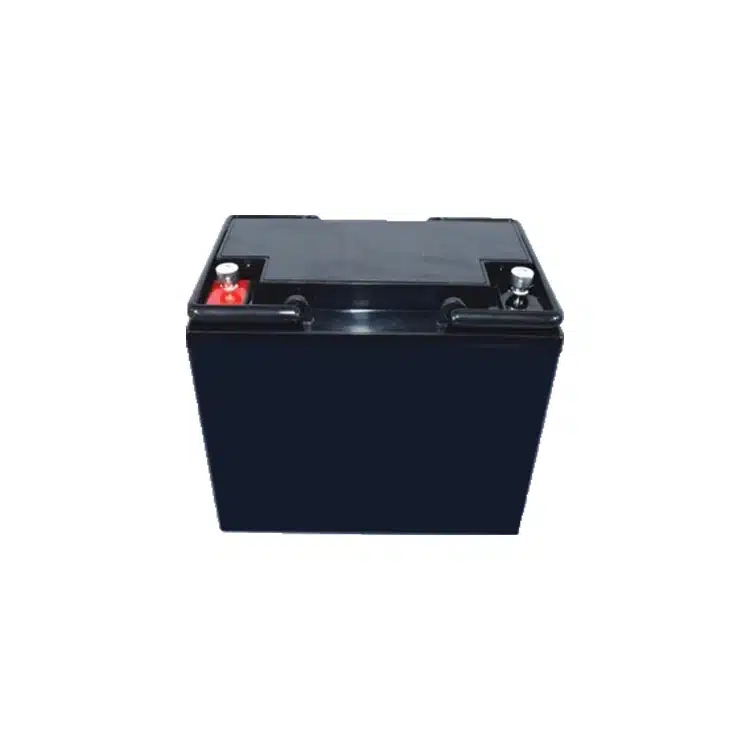

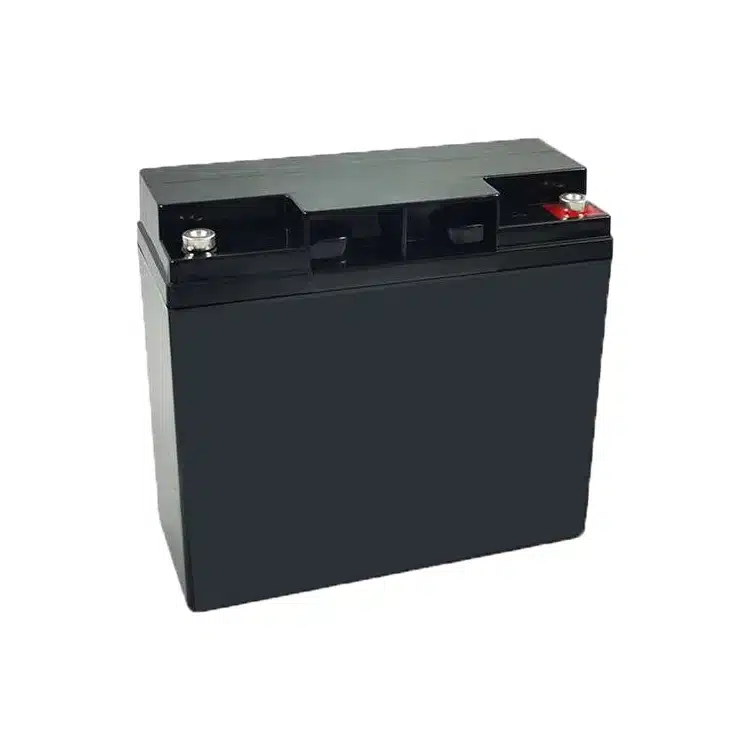

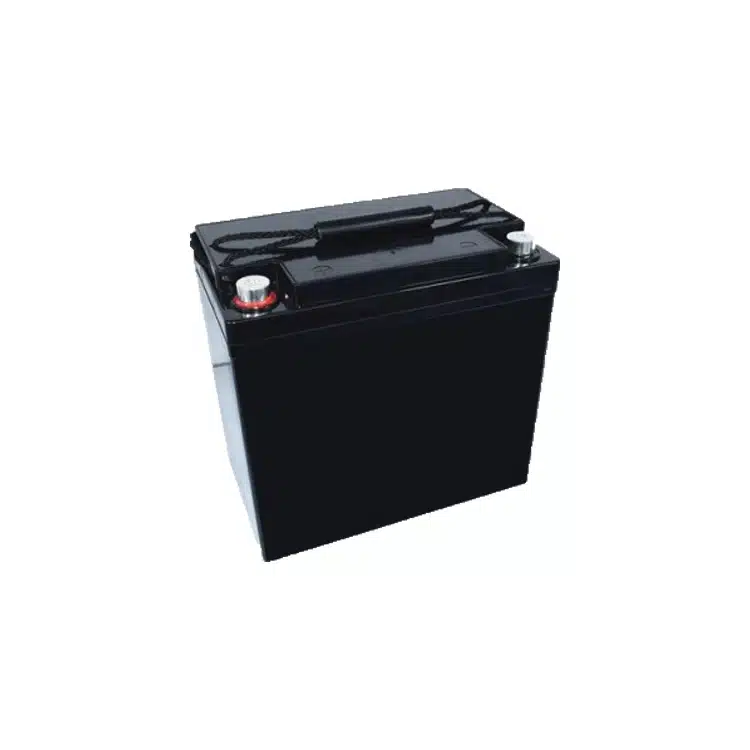

24V Lifepo4 Battery
Composed of 8 series 3.2V lfp cells. High-voltage power for demanding applications: electric wheelchairs, mobility scooters, portable medical devices.
It combines the advantages of voltage and capacity, meeting the needs of most 24V motors, and allowing for higher power discharge. Copper busbars and BMS laser welding support continuous 200A+ discharge, IP65 waterproof.
36V Lifepo4 Battery
Drop-in replacement lithium phosphate batteries from 100Ah to 200Ah — perfect for golf, utility & commercial vehicles. It consists of 12 series of 3.2V LFP batteries.
They are exact fit for Club Car, EZ-GO, Yamaha and other 36V golf cart brands. No watering, no terminal cleaning, no acid spills. Easy to use.
48V Lifepo4 Battery
51.2V lifepo4 server rack battery (16 x 3.2V cells) with balancing — optimized for 48V inverter compatibility and maximum energy harvest. Typical 50Ah and 100Ah are suitable for residential energy storage and commercial light duty.
Our 48V LFP batteries can operate continuously under high loads and support CAN/RS485/Modbus/SNMP communication. One purchase, 10+ years of use.

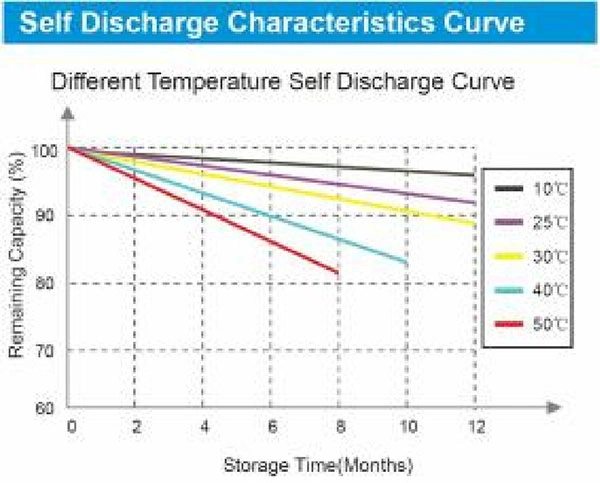

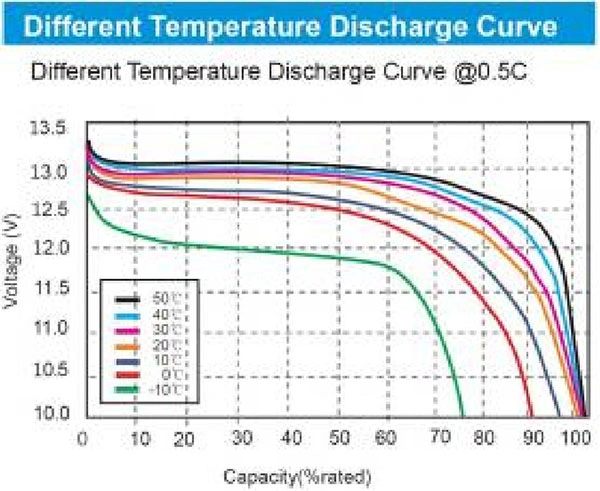

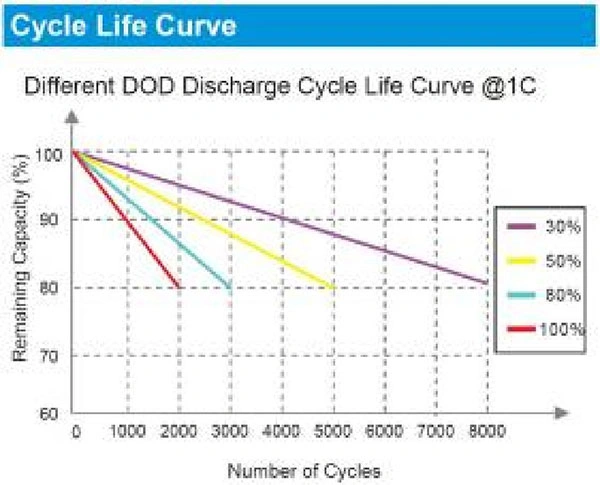

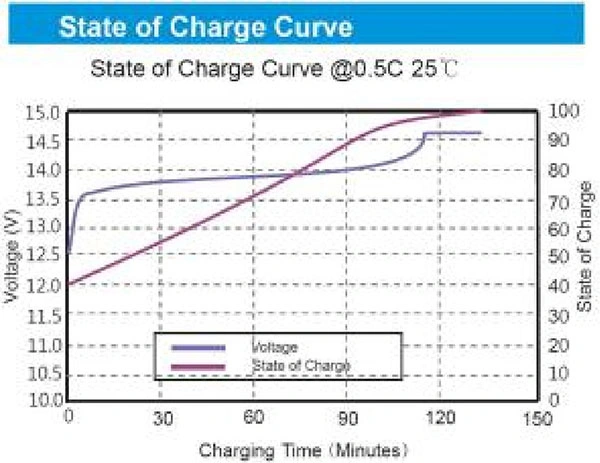

Lifepo4 Lithium Battery Technical Performance
- Engineering data for system design & integration — lifepo4 cell to battery pack with high density.

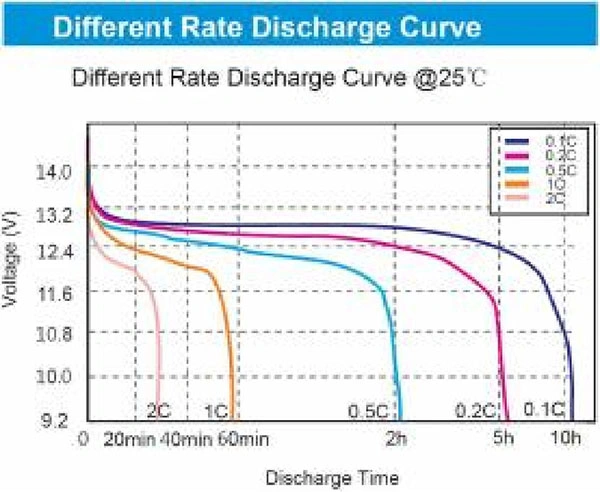

- Flat discharge voltage curve — 90% of capacity delivered between 3.2V and 3.0V per cell, Ensure a stable power supply for your RVs, electric vehicles, electric boats, home energy storage, and base station backup power.

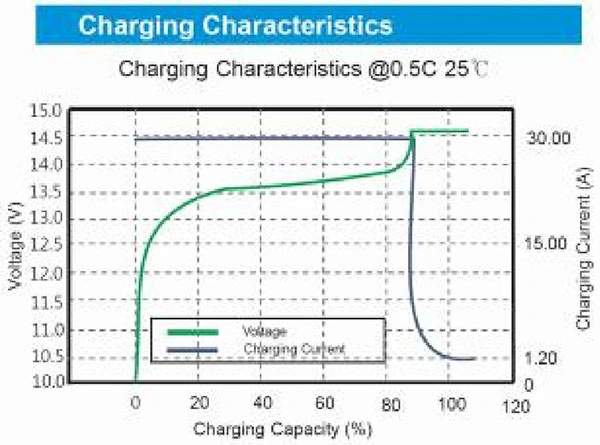

- 20~60℃ working temperature range. Support 1~3C charging rate.
- Multiple protection. All our Hongyitai lifepo4 battery pack protect against over-charging, over-discharging, short-circuit.
- Safety & certifications. We can provide UL1642 for LFP cell, CE / RoHS for Europe customers, UN38.3 for air & sea transportation.
Grade A Lifepo4 Lithium iron Phosphate Cell
We source directly from battery manufacturers such as CATL, EVE, REPT, and GOTION, ensuring a stable supply and zero compromise.
100% Class-A cells. We reject minor defects (Class B and recycled cells), ensuring that capacity, voltage, and internal resistance are properly matched.
Our factory insists on full incoming inspections to ensure that batteries are free of bulges, leaks, dents, and scratches, and that dimensions and appearance meet requirements.
Advanced LFP Battery Protection Board
Single PCB design for 4S, 8S, 12S to 16S series configurations — accurate, compact, and ideal for 12V, 24V, 36V, and 48V battery packs.
Hardware protection: Overcharge, over-discharge, overcurrent, short circuit, and temperature protection; CAN/RS485 communication protocol; and SOC estimation.
During charging, resting, and discharging cycles, energy transfer via inductors or capacitors ensures proper heat dissipation for the battery pack.
Lifepo4 Battery Pack Module Building
After all LFP battery cell matched for capacity, resistance and voltage, we start fiber laser welding for busbar connections, make it accurate connection and perform well.
BMS intergration of current sensors, temperature probes, and communication wiring The welded batteries are then assembled into the final casing.
Final Deep Cycle Battery Testing
We will start the first full-function inspection of assembled battery pack, it covers charge, discharge, capacity, BMS, Bluetooth, communication protocol.
Place the battery in a high-temperature aging chamber for at least 3 cycles, and judge its capacity after 12 months. After 12 months, the capacity is ≥ 90%.
Comprehensive inspection: electrical, visual, dimensional check, work manual, packing list.
Our Deep Cycle Lithium Battery Features
The safest and 6000+ cycles durable lithium-ion chemistry for stationary and mobile energy storage.
Mechanical design ensures cell stability under shock, vibration, and thermal cycling.
Lithium iron phosphate battery cell: about 0.5 yuan/Wh, ternary lithium battery cell: about 0.7-0.9 yuan/Wh, cheaper 0.2-0.3 yuan/Wh, corresponding to about 20% -35%.
Our lithium iron lifepo4 battery certifications & reports
Global standards compliance — safety, quality, and environmental certifications for worldwide countries. UL1642, CE, MSDS, UN38.3, EMC.

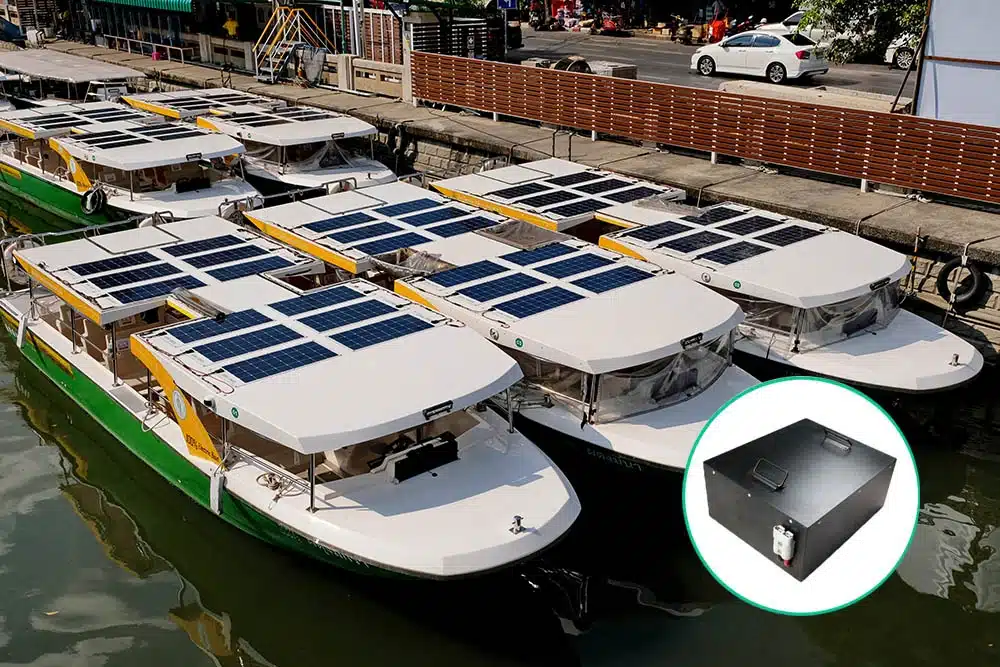

Hongyitai Deep Cycle Battery Applications
LiFePO4 batteries have unique properties such as safety, long cycle life, and high efficiency, and are widely used in devices ranging from electric vehicles to various industrial applications. Learn the details of why the advantages of lithium iron phosphate batteries outweigh their disadvantages in industrial applications.
Our Lifepo4 Battery Pack Specific Voltage & Capacity & Sizes
Full LFP battery pack specifications for exact fit — From compact 12V 12Ah to Industrial 48V 100Ah.
Model | Voltage (V) | Capacity (Ah) | Dimension (Leng*Width*Height) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function |
|---|---|---|---|---|---|---|
HYT126 | 12.8 | 6 | 90*70*101 | >6000 | 0.7 | Yes |
HYT127 | 12.8 | 7 | 151*65*94 | >6000 | 1 | Yes |
HYT128 | 12.8 | 8 | 151*65*94 | >6000 | 1 | Yes |
HYT1210 | 12.8 | 10 | 151*65*94 | >6000 | 1.2 | Yes |
HYT1212 | 12.8 | 12 | 151*98*95 | >6000 | 1.6 | Yes |
HYT1218 | 12.8 | 18 | 151*98*95 | >6000 | 2.2 | Yes |
HYT1220 | 12.8 | 20 | 181*77*167 | >6000 | 2.5 | Yes |
HYT1224 | 12.8 | 24 | 165*126*175 | >6000 | 3 | Yes |
HYT1230 | 12.8 | 30 | 165*126*175 | >6000 | 3.8 | Yes |
HYT1235 | 12.8 | 35 | 195*130*154 | >6000 | 4.2 | Yes |
HYT1236 | 12.8 | 36 | 198*166*170 | >6000 | 4.2 | Yes |
HYT1250 | 12.8 | 50 | 229*138*210 | >6000 | 6 | Yes |
HYT1260 | 12.8 | 60 | 229*138*210 | >6000 | 6.2 | Yes |
HYT1280 | 12.8 | 80 | 260*168*210 | >6000 | 9.5 | Yes |
HYT12100 | 12.8 | 100 | 328*172*215 | >6000 | 12 | Yes |
HYT12150 | 12.8 | 150 | 328*172*215 | >6000 | 16 | Yes |
HYT12200 | 12.8 | 200 | 522*240*218 | >6000 | 23 | Yes |
HYT12230 | 12.8 | 230 | 522*240*218 | >6000 | 23 | Yes |
HYT12300 | 12.8 | 300 | 522*240*218 | >6000 | 32 | Yes |
HYT12400 | 12.8 | 400 | 522*240*218 | >6000 | 40 | Yes |
Model | Voltage (V) | Capacity (Ah) | Dimension (Leng*Width*Height) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function |
|---|---|---|---|---|---|---|
HYT244 | 25.6 | 4 | 190*74*68 | >6000 | 1 | Yes |
HYT2450 | 25.6 | 50 | 328*172*215 | >6000 | 12 | Yes |
HYT24100 | 25.6 | 100 | 522*240*218 | >6000 | 23 | Yes |
HYT24150 | 25.6 | 150 | 522*240*218 | >6000 | 32 | Yes |
HYT24200 | 25.6 | 200 | 522*240*218 | >6000 | 42 | Yes |
Model | Voltage (V) | Capacity (Ah) | Dimension (Leng*Width*Height) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function |
|---|---|---|---|---|---|---|
HYT3650 | 38.4 | 50 | 520*268*228 | >6000 | 25.8 | Yes |
HYT36100 | 38.4 | 100 | 520*268*228 | >6000 | 25.8 | Yes |
Model | Voltage (V) | Capacity (Ah) | Dimension (Leng*Width*Height) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function |
|---|---|---|---|---|---|---|
HYT4850 | 51.2 | 50 | 522*240*218 | >6000 | 22 | Yes |
HYT4860 | 51.2 | 60 | 405*173*208 | >6000 | 23 | Yes |
HYT48100 | 51.2 | 100 | 521*268*220 | >6000 | 40 | Yes |
Why Select Deep Cycle Lithium Battery, Not Lead Acid
Lifepo4 battery is a smart upgrade choice — 10× lifespan, 50% weight savings, zero maintenance, lower total cost.
Traditional lead-acid acid contains a large amount of lead and acid solution, which poses safety risks such as leakage and corrosion. However, the structure of lithium iron phosphate batteries is stable and safe.
The car starter power supply is the best example. Allowing you to start anytime, anywhere, reducing the hassle of power outages.
Why Choose Hongyitai as Best Deep Cycle Battery Supplier
# Your Professional Deep cycle battery supplier
4 Steps to Customize LiFePo4 Battery From Us
Whether it is 12v lithium battery, 24v lithium battery, 36v lithium battery, 48v lithium battery, 60v lifepo4 battery, 72v lifepo4 battery. we can provide high-quality and reasonably priced batteries.
How We Connect in Series & Parallel of Lifepo4 Battery Packs
Our Advanced LFP Battery Pack Manufacturing Process & Facilities
Our Huizhou production base covers 10,000 square meters and is equipped with a variety of advanced intelligent production equipment, including automatic batching machines, laser welding machines, automatic pad application equipment, automatic spot welding equipment, protective board testing equipment, and finished product aging equipment.
The entire workshop is managed under 5S standards, ensuring high-efficiency production with a monthly production capacity of 10,000 units, meeting the audit and manufacturing requirements of dozens of well-known domestic and international companies.
FAQs for lifepo4 batteries
Below are some mostly asked questions for lithium iron lifepo4 batteries. As a professional China lifepo4 battery factory, we would like to share our comprehensive answers to provide you extra values.
Yes, we never use Grade B or salvaged battery cells.
The main materials used are ABS and sheet metal. Batteries with a capacity of less than 50Ah have ABS casings, while batteries with a capacity of more than 50Ah have sheet metal housing.
After 6000 cycles, our capacity is no less than 80%.
Our LFP battery pack order is 100 sets.
Yes, we have some batteries in stock. Please contact us for specific models.
For small orders, we ship within 3-7 days; for large LFP battery orders, we ship within approximately 15 days.
