Lithium Polymer Battery
High C Rate
High charging and discharging rate.
Customization
Flexible in size and capacity.
Lightweight
At same capacity, 40% lighter than other battery type.
Safety
More safer than other traditional batteries.
Lithium Polymer Battery product
Below are some of the lithium battery products we produce: 3.7V, 7.4V, and 11.1V lithium batteries, corresponding to 1S, 2S, and 3S polymer batteries. The batteries mainly come in four capacity stages: 50mAh, 500mAh, 2000mAh, and 5000mAh. All batteries are equipped with a protection board and terminal wires (oepn wires) and feature overcharge, overcurrent, and short-circuit protection.
551430 3.7V 180mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 180mAh
Rated energy: 0.666Wh
Thickness: ≤5.5mm
Widness: ≤14.0mm
Length: ≤30.0mm
Internal resistance: ≤150mΩ
502025 3.7V 200mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 200mAh
Rated energy: 0.74Wh
Thickness: ≤5.0mm
Widness: ≤20.0mm
Length: ≤25.0mm
Internal resistance: ≤120mΩ
602035 3.7V 400mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 400mAh
Rated energy: 1.48Wh
Thickness: ≤6.0mm
Widness: ≤20.0mm
Length: ≤35.0mm
Internal resistance: ≤100mΩ
503035 3.7V 550mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 550mAh
Rated energy: 2.035Wh
Thickness: ≤5.0mm
Widness: ≤30.0mm
Length: ≤35.0mm
Internal resistance: ≤80mΩ
603035 3.7V 600mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 600mAh
Rated energy: 2.22Wh
Thickness: ≤6.0mm
Widness: ≤30.0mm
Length: ≤35.0mm
Internal resistance: ≤75mΩ
603048 3.7V 950mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 950mAh
Rated energy: 3.515Wh
Thickness: ≤6.0mm
Widness: ≤30.0mm
Length: ≤48.0mm
Internal resistance: ≤60mΩ
102050 3.7V 1000mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 1000mAh
Rated energy: 3.7Wh
Thickness: ≤10.0mm
Widness: ≤20.0mm
Length: ≤50.0mm
Internal resistance: ≤70mΩ
103040 3.7V 1200mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 1200mAh
Rated energy: 4.44Wh
Thickness: ≤10.0mm
Widness: ≤30.0mm
Length: ≤40.0mm
Internal resistance: ≤60mΩ
602025 3.7V 250mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 250mAh
Rated energy: 0.925Wh
Thickness: ≤6.0mm
Widness: ≤20.0mm
Length: ≤25.0mm
Internal resistance: ≤120mΩ
802540 3.7V 850mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 850mAh
Rated energy: 3.145Wh
Thickness: ≤8.0mm
Widness: ≤25.0mm
Length: ≤40.0mm
Internal resistance: ≤70mΩ
605080 3.7V 3000mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 3000mAh
Rated energy: 11.1Wh
Thickness: ≤6.0mm
Widness: ≤50.0mm
Length: ≤80.0mm
Internal resistance: ≤60mΩ
102535 3.7V 800mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 800mAh
Rated energy: 2.96Wh
Thickness: ≤10.0mm
Widness: ≤25.0mm
Length: ≤35.0mm
Internal resistance: ≤70mΩ
103450 3.7V 1800mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 1800mAh
Rated energy: 6.66Wh
Thickness: ≤10.0mm
Widness: ≤34.0mm
Length: ≤50.0mm
Internal resistance: ≤60mΩ
104050 3.7V 2500mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 2500mAh
Rated energy: 9.25Wh
Thickness: ≤10.0mm
Widness: ≤40.0mm
Length: ≤50.0mm
Internal resistance: ≤60mΩ
303450 3.7V 500mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 500mAh
Rated energy: 1.85Wh
Thickness: ≤3.0mm
Widness: ≤34.0mm
Length: ≤50.0mm
Internal resistance: ≤80mΩ
505080 3.7V 2000mAh Battery
Nominal voltage: 3.7V
Nominal capacity: 2000mAh
Rated energy: 7.4Wh
Thickness: ≤5.0mm
Widness: ≤50.0mm
Length: ≤80.0mm
Internal resistance: ≤50mΩ
402050 7.4V 350mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 350mAh
Rated energy: 2.59Wh
Thickness: ≤8mm
Widness: ≤20.0mm
Length: ≤50.0mm
502535 7.4V 400mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 400mAh
Rated energy: 2.96Wh
Thickness: ≤10.0mm
Widness: ≤25.0mm
Length: ≤35.0mm
702030 7.4V 450mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 450mAh
Rated energy: 3.33Wh
Thickness: ≤7.0mm
Widness: ≤20.0mm
Length: ≤30.0mm
603040 7.4V 900mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 900mAh
Rated energy: 6.66Wh
Thickness: ≤12.0mm
Widness: ≤30.0mm
Length: ≤40.0mm
602248 7.4V 600mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 600mAh
Rated energy: 4.44Wh
Thickness: ≤8mm
Widness: ≤20.0mm
Length: ≤50.0mm
523450 7.4V 1000mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 1000mAh
Rated energy: 7.4Wh
Thickness: ≤10.4.0mm
Widness: ≤34.0mm
Length: ≤50.0mm
202065 7.4V 1350mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 1350mAh
Rated energy: 9.99Wh
Thickness: ≤40.0mm
Widness: ≤20.0mm
Length: ≤65.0mm
103763 7.4V 2800mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 2800mAh
Rated energy: 20.72Wh
Thickness: ≤20.0mm
Widness: ≤37.0mm
Length: ≤63.0mm
705568 7.4V 3200mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 3200mAh
Rated energy: 23.68Wh
Thickness: ≤14mm
Widness: ≤55.0mm
Length: ≤68.0mm
924565 7.4V 3500mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 3500mAh
Rated energy: 25.9Wh
Thickness: ≤18.4mm
Widness: ≤45.0mm
Length: ≤65.0mm
805080 7.4V 4000mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 4000mAh
Rated energy: 29.6Wh
Thickness: ≤16.0mm
Widness: ≤50.0mm
Length: ≤80.0mm
804046 7.4V 1500mAh Battery
Nominal voltage: 7.4V
Nominal capacity: 1500mAh
Rated energy: 11.1Wh
Thickness: ≤16.0mm
Widness: ≤40.0mm
Length: ≤46.0mm
455050 11.1V 1100mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 1100mAh
Rated energy: 12.21Wh
Thickness: ≤9mm
Widness: ≤50.0mm
Length: ≤50.0mm
603450 11.1V 1200mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 1200mAh
Rated energy: 13.32Wh
Thickness: ≤12.0mm
Widness: ≤34.0mm
Length: ≤50.0mm
803450 11.1V 1500mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 1350mAh
Rated energy: 14.985Wh
Thickness: ≤16.0mm
Widness: ≤34.0mm
Length: ≤50.0mm
704551 11.1V 1800mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 1800mAh
Rated energy: 19.98Wh
Thickness: ≤14.0mm
Widness: ≤45.0mm
Length: ≤51.0mm
103450 11.1V 2000mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 2000mAh
Rated energy: 22.2Wh
Thickness: ≤20mm
Widness: ≤34.0mm
Length: ≤50.0mm
853496 11.1V 2200mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 2200mAh
Rated energy: 24.42Wh
Thickness: ≤17mm
Widness: ≤34.0mm
Length: ≤96.0mm
633496 11.1V 2600mAh Battery
Nominal voltage: 11.1V
Nominal capacity: 2600mAh
Rated energy: 28.86Wh
Thickness: ≤12.6mm
Widness: ≤34.0mm
Length: ≤96.0mm

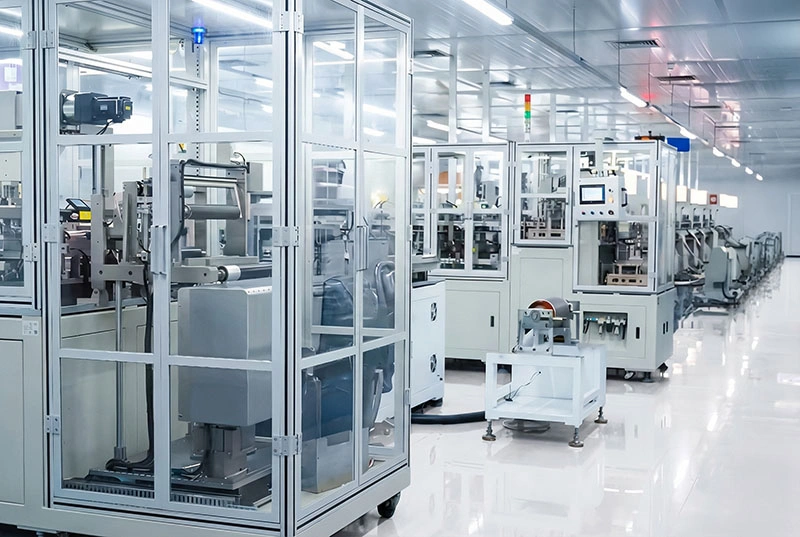

Professional Lithium Polymer Battery Manufacturer
Custom lithium polymer battery steps
Below are 4 key steps to tailor your unique li-polymer battery production workflow. Our sales and engineers provide the fastest prototyping samples campaign.
#1 Submit your power requirements: provide your battery power needs, voltage, capacity, maximum size, as well as discharge rate and operating temperature.
#2 Battery evaluation and design: We will evaluate as soon as possible the way your battery pack is connected in series and parallel, and the design and selection of protection board, as well as the matching wires and connection terminals.
#3 Prototyping and testing: start sample making according to the evaluated battery solution, the battery pack samples are placed in the charging and discharging cabinet and run for 2 cycles to check its performance.
#4 Certification and mass production: Once the sample is confirmed by the customer, we start to apply for the certification to meet your country’s needs. And we start to produce mass production according to the samples.
lipo battery Model List
Hongyitai is a lithium battery factory in China, producing batteries with capacities ranging from 50mAh to 5000mAh. We also support high-voltage batteries of 7.4V and 11.1V. The charge-discharge rates of our batteries can reach 1.0C, 3.0C, 5.0C, and 10.0C. You are welcome to view the specific details and contact us for more information.
Model | Voltage (V) | Capacity (mAh) | Dimension (Thick*Width*Length) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function | Know More |
|---|---|---|---|---|---|---|---|
HYT551430 | 3.7 | 180 | 5.5*14*30 | >500 | 4 | Yes | |
HYT502025 | 3.7 | 200 | 5*20*25 | >500 | 4 | Yes | |
HYT602035 | 3.7 | 400 | 6*20*35 | >500 | 8 | Yes | |
HYT603035 | 3.7 | 600 | 6*30*35 | >500 | 12 | Yes | |
HYT603048 | 3.7 | 950 | 6*30*48 | >500 | 17 | Yes | |
HYT102050 | 3.7 | 1000 | 10*20*50 | >500 | 18 | Yes | |
HYT103040 | 3.7 | 1200 | 10*30*40 | >500 | 21 | Yes | |
HYT652025 | 3.7 | 250 | 6.5*20*25 | >500 | 5 | Yes | |
HYT802540 | 3.7 | 850 | 8*25*40 | >500 | 15 | Yes | |
HYT605080 | 3.7 | 3000 | 6*50*80 | >500 | 55 | Yes | |
HYT102535 | 3.7 | 800 | 10*25*35 | >500 | 13 | Yes | |
HYT103450 | 3.7 | 1800 | 10*34*50 | >500 | 40 | Yes | |
HYT104050 | 3.7 | 2500 | 10*40*50 | >500 | 51 | Yes | |
HYT303450 | 3.7 | 500 | 3*34*50 | >500 | 10 | Yes | |
HYT452530 | 3.7 | 300 | 4.5*25*30 | >500 | 6 | Yes | |
HYT503040 | 3.7 | 600 | 5*30*40 | >500 | 8 | Yes | |
HYT603450 | 3.7 | 1100 | 6*34*50 | >500 | 20 | Yes | |
HYT371168 | 3.7 | 220 | 3.7*11*68 | >500 | 4 | Yes | |
HYT551035 | 3.7 | 150 | 5.5*10*35 | >500 | 3 | Yes | |
HYT453535 | 3.7 | 500 | 4.5*35*35 | >500 | 10 | Yes | |
HYT505080 | 3.7 | 2000 | 5*50*80 | >500 | 46 | Yes | |
HYT501030 | 3.7 | 100 | 5*10*30 | >500 | 2.5 | Yes | |
HYT452535 | 3.7 | 350 | 4.5*25*35 | >500 | 7 | Yes | |
HYT555368 | 3.7 | 2500 | 5.5*53*68 | >500 | 50 | Yes |
Model | Voltage (V) | Capacity (mAh) | Dimension (Thick*Width*Length) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function | Know More |
|---|---|---|---|---|---|---|---|
HYT402050 | 7.4 | 350 | 8*20*50 | >500 | 13 | Yes | |
HYT502535 | 7.4 | 400 | 10*25*35 | >500 | 14 | Yes | |
HYT702030 | 7.4 | 450 | 14*20*30 | >500 | 22 | Yes | |
HYT603030 | 7.4 | 500 | 12*30*30 | >500 | 22 | Yes | |
HYT602248 | 7.4 | 600 | 6*22*48 | >500 | 23 | Yes | |
HYT603040 | 7.4 | 900 | 12*30*40 | >500 | 40 | Yes | |
HYT523450 | 7.4 | 1000 | 10.4*34*50 | >500 | 46 | Yes | |
HYT202065 | 7.4 | 1350 | 4*20*65 | >500 | 50 | Yes | |
HYT103763 | 7.4 | 2800 | 20**37*65 | >500 | 76 | Yes | |
HYT705568 | 7.4 | 3200 | 14*55*68 | >500 | 78 | Yes | |
HYT924565 | 7.4 | 3500 | 18*45*65 | >500 | 84 | Yes | |
HYT805080 | 7.4 | 4000 | 16*50*80 | >500 | 120 | Yes | |
HYT804046 | 7.4 | 1500 | 16*40*46 | >500 | 55 | Yes | |
KHT904060 | 7.4 | 2200 | 18*40*60 | >500 | 65 | Yes | |
HYT105050 | 7.4 | 3000 | 20*50*50 | >500 | 90 | Yes |
Model | Voltage (V) | Capacity (mAh) | Dimension (Thick*Width*Length) (mm) | Lifespan (25℃,0.5C,80%DOD) | Weight (Kg) | Protection Function | Know More |
|---|---|---|---|---|---|---|---|
HYT455050 | 11.1 | 1100 | 13.5*50*50 | >500 | 60 | Yes | |
HYT603450 | 11.1 | 1200 | 18*34*50 | >500 | 54 | Yes | |
HYT803450 | 11.1 | 1500 | 24*34*50 | >500 | 72 | Yes | |
HYT704551 | 11.1 | 1800 | 21*45*51 | >500 | 80 | Yes | |
HYT103450 | 11.1 | 2000 | 30*34*50 | >500 | 110 | Yes | |
HYT853496 | 11.1 | 2200 | 25.5*34*96 | >500 | 145 | Yes | |
HYT633496 | 11.1 | 2600 | 19*34*96 | >500 | 116 | Yes |
Hongyitai Lithium Battery Factory Direct Pricing
- Minimum Order Quantity: 1,000 pieces per model.
- All orders come with the necessary certificates.
- We are happy to custom your own li-polymer battery.
Lithium polymer battery vs ion
The full name of polymer batteries is lithium polymer batteries, which are a type of lithium battery. Below are four main differences: raw material, safety level, formability and single cell voltage.
The right side shows a demonstration video of how a polymer battery starts a motor.
Why choose Hongyitai as lithium ion polymer battery supplier
- 10 Years Experience: Over 10 years working experience in polymer battery field.
- Free Samples: Provide 7 days free samples freely.
- Certified: Provide UL1642, IEC62133, UN38.3, MSDS, CE certificates as it is ready.
- Full Models Available: Produce no matter which li-polymer battery you want.
- Tech Support: Before production, our engineer team will guide and evaluate your battery requirements.
Polymer Battery Curve
The right side shows a differential capacity curve for a polymer battery:
- Time — Voltage & Current
- Capacity — Voltage
- Time — Capacity & Specific Capacity
- Cycle Number – Charging Capacity & Discharge Capacity & Charging Specific Capacity & Discharge Capacity
The following is a simplified description of our lithium polymer battery manufacturing process:
1. Mixing
Make a slurry of cathode (positive side) and anode (negative side) electrodes according to the scheme and recipe of the polymer battery model.
2. Coating
Paste is applied to a metal foil (aluminum for cathode, copper for anode). This creates the desired positive and negative plates
3. Cutting
Cut the dried electrode plates to the exact length and width required for the battery cell.
4. Winding
The cathode, anode and diaphragm are wound together. Forms the internal structure of the cell.
5. Injection of electrolyte
Inject electrolyte into the encapsulated cell to allow lithium ions to travel between the positive and negative plates.
6. Sealing & Formation
Encapsulate the cell with an aluminum-plastic film casing to prevent the electrolyte from being exposed. Activate the internal chemical material by charging and discharging.
7. Aging and Testing
Final test of capacity, voltage and overall performance through high and normal temperature aging tests.
Hongyitai Li-polymer Battery Production Process
FAQs for li-polymer batteries
The disadvantages of polymer batteries are as follows:
- They have poor high-temperature resistance, and there may be risks of swelling and thermal runaway in high-temperature environments.
- They have a shorter cycle life; typically, after about 400 cycles, the battery capacity declines rapidly, as seen in devices like iPhones.
- They are more costly because cobalt, a key resource, is scarce, making their production cost higher than that of lithium iron phosphate batteries.
- They are generally customized; almost every customer uses a different battery, which incurs additional production costs.
Lithium cobalt oxide batteries have a cycle life of over 500 cycles, ternary batteries are around 400 to 500 cycles, and lithium manganese oxide batteries may last about 300 cycles.
No problem, generally polymer batteries are equipped with a protection board that includes overcharge protection.
It is not recommended to leave lithium polymer batteries on the charger overnight. There is a risk of overheating. Once fully charged, it is advisable to disconnect the power.
The self-discharge rate of general polymer batteries is about 2mV per day. We recommend charging them every three months and charging to half capacity (3.7~3.9V).
- Charge correctly, try to keep charges and discharges shallow, and avoid overcharging and deep discharging.
- Use within the recommended operating temperature range, ideally between 10 and 45 degrees Celsius.
- Make sure to use a protection board to prevent overcharging, over-discharging, and short-circuiting.
Under normal usage conditions, lithium polymer batteries can be used for 2-3 years, mainly depending on the charge & discharge rate and usage temperature.
Yes, Hongyitai is your one-stop supplier for all your lithium-ion polymer battery needs. We can customize sizes, shapes, capacities, and voltages to meet your specific requirements.
